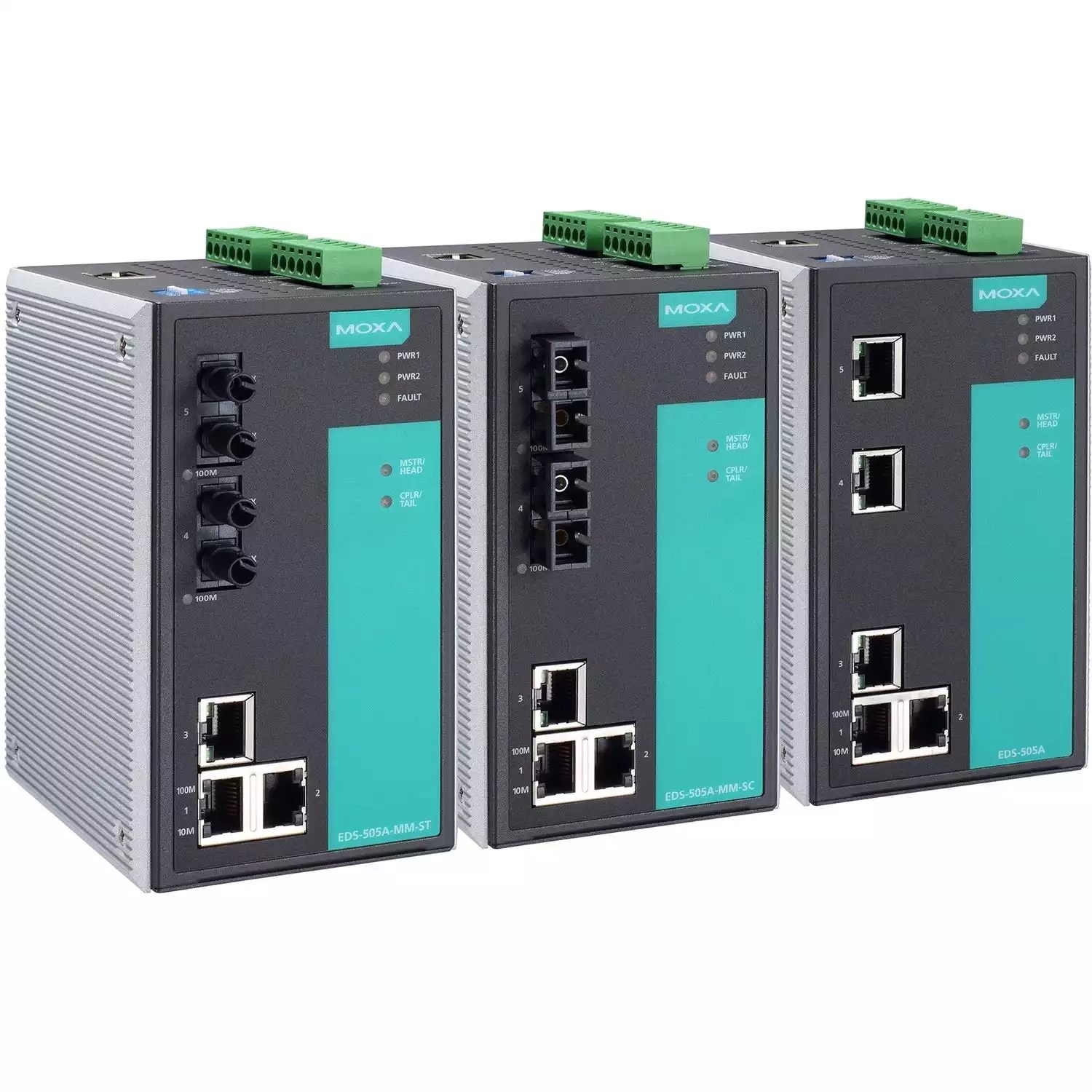

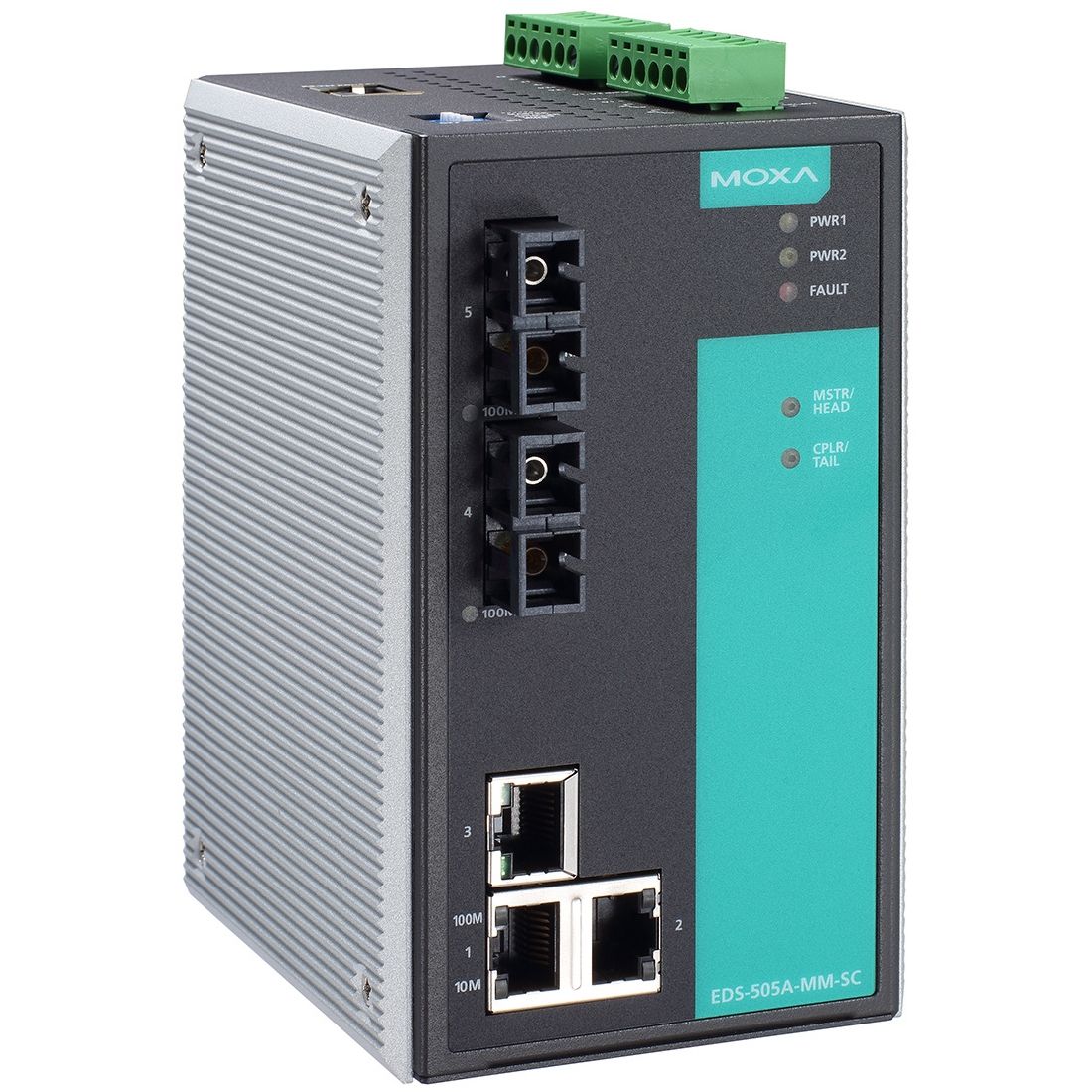

EDS-505A-MM-SC-T

3x 10/100BaseT(X) + 2x multi porty, -40~75°C

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: G6280230 Produktové číslo: EDS-505A-MM-SC-TKategorie: Výrobce: MOXA
Poptat produkt
• Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP* and Modbus/TCP protocols for device management and monitoring
• Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP* for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• RMON for efficient network monitoring and proactive capability
• SNMPv1/v2c/v3 for different levels of network management
• TACACS+*, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• Bandwidth management to prevent unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Automatic warning by exception through e-mail, relay output
• operating temperature: -40 to 75°C

The EDS-505A/508A are standalone 16-port managed Ethernet switches. With their advanced Turbo Ring and Turbo Chain technology (recovery time < 20 ms) and RSTP/STP (IEEE 802.1w/D), the EDS-505A/508A switches increase the reliability and availability of your industrial Ethernet network. Models with an wide operating temperature range of -40 to 75°C are also available, and the switches support several reliable and intelligent functions, including IEEE 1588 PTP, Modbus/TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH, making the EDS-505A/508A switches suitable for any harsh industrial environment.
Výrobce

Moxa

Certifikace

ATEX

Gigabit Ethernet

Ne

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

5

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ne

Datasheet

Stáhnout datasheet:
