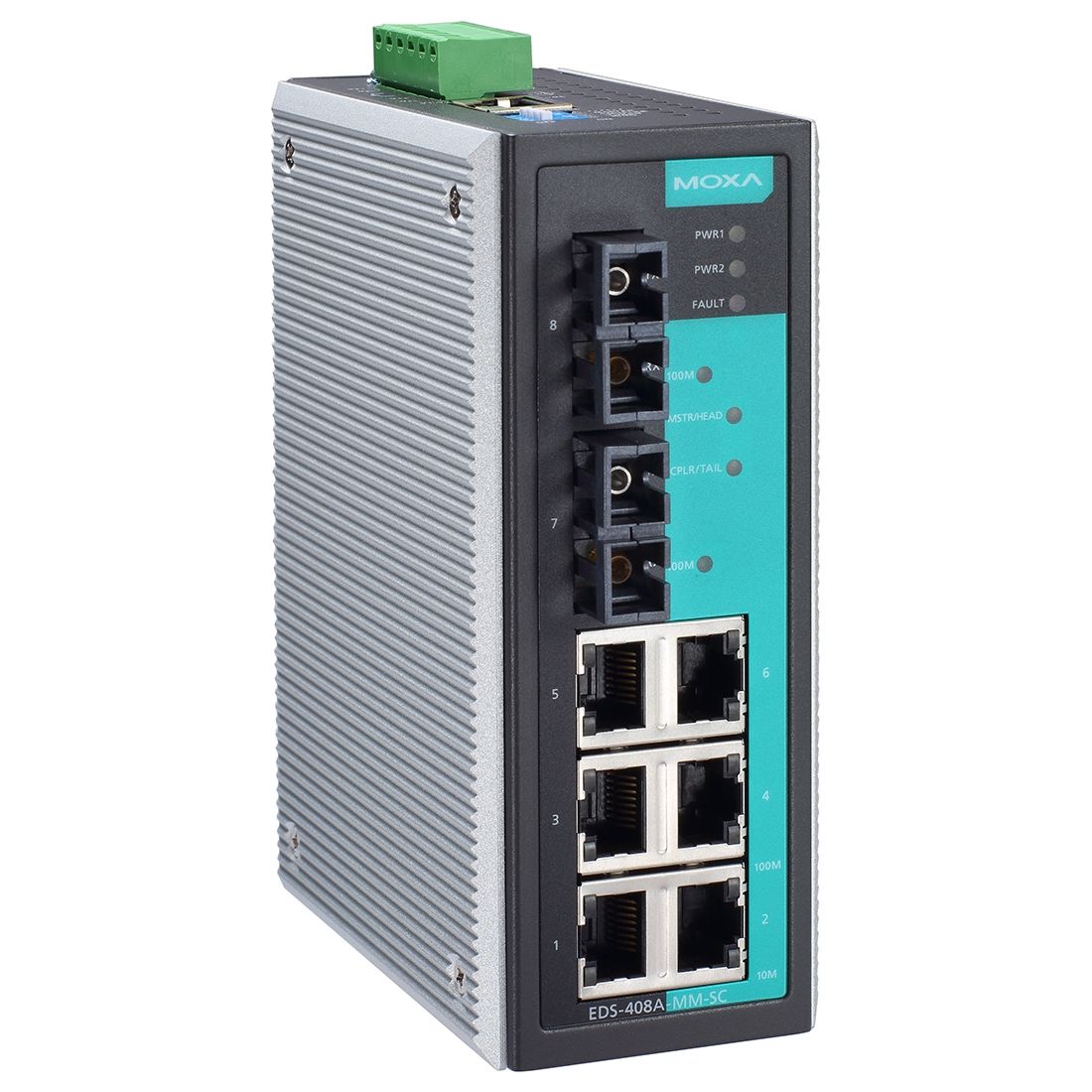

EDS-408A-3S-SC

5x 10/100BaseT(X) + 3x single porty

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: G6282330 Produktové číslo: EDS-408A-3S-SCKategorie: Výrobce: MOXA
Poptat produkt
• Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, and 3 100BaseFX single-mode ports with SC connectors
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP* and Modbus/TCP protocols for device management and monitoring
• Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms), and RSTP/STP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
• RMON for efficient network monitoring and proactive capability
• SNMPv1/v2c/v3 for different levels of network management security
• Bandwidth management to prevent unpredictable network status
• Port mirroring for online debugging
• operating temperature: 0 to 60°C

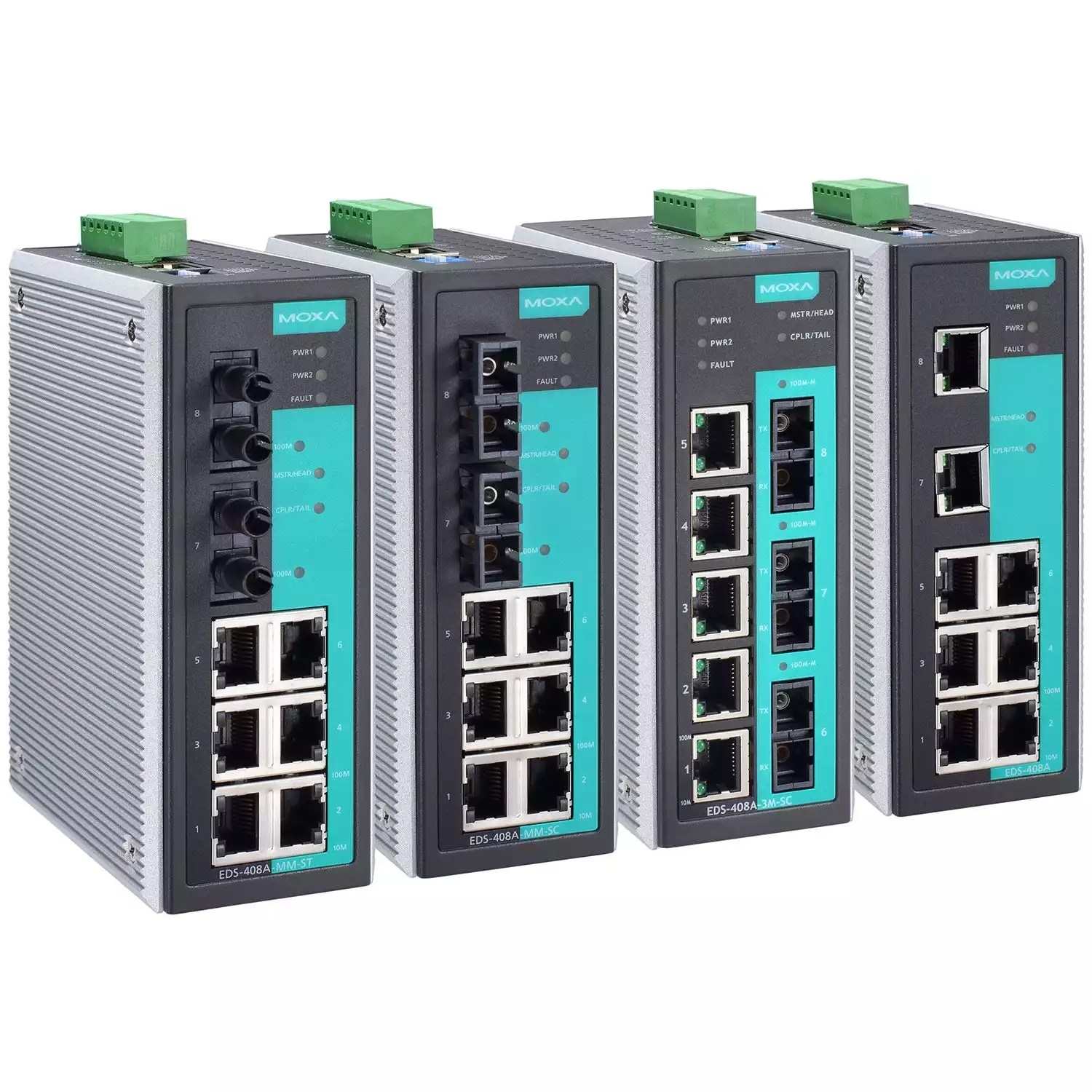

Moxa’s EDS-408A 3 Fiber series are 8-port managed Ethernet switches with three optical fiber ports in a slim form factor design. The unique 3 fiber port feature makes the EDS-408A 3 Fiber series ideal for industrial applications, such as widely dispersed wind farm networks that need more long-haul transmission capability in a standalone Ethernet switch. Fiber transmission offers the benefit of greater EMI protection to prevent unstable network transmissions and data loss. The EDS-408A 3 Fiber series is designed for completely fan-less operation in a wide temperature range from -40 to 75°C. In addition, the switches support a variety of useful management functions, such as Turbo Ring, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay.
Výrobce

Moxa

Certifikace

ATEX

Gigabit Ethernet

Ne

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

8

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ne

SFP slot

Ne

Datasheet

Stáhnout datasheet:
