• Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, and 3 100BaseFX multi-mode ports with SC connectors
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP* and Modbus/TCP protocols for device management and monitoring
• Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms), and RSTP/STP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
• RMON for efficient network monitoring and proactive capability
• SNMPv1/v2c/v3 for different levels of network management security
• Bandwidth management to prevent unpredictable network status
• Port mirroring for online debugging
• operating temperature: 0 to 60°C

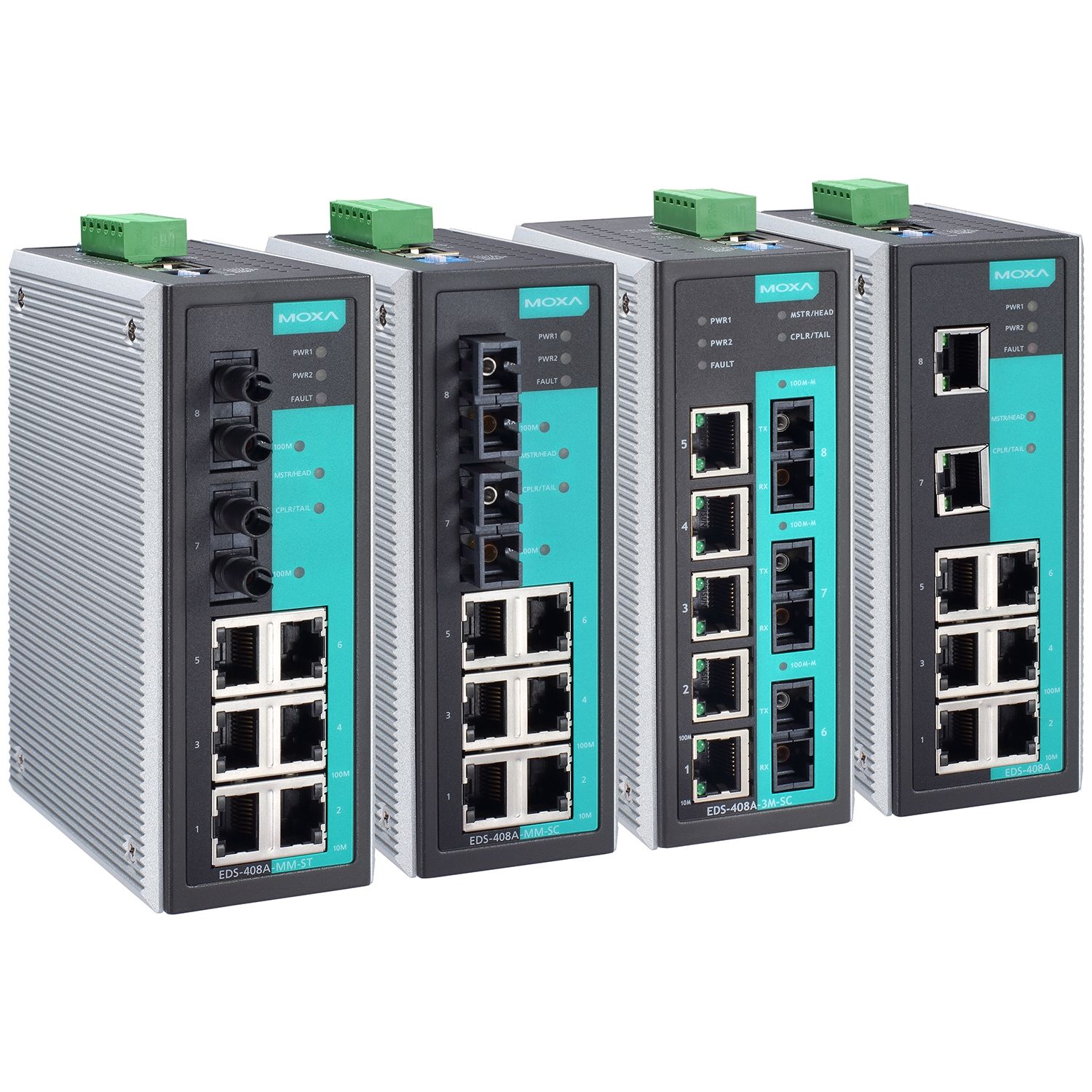

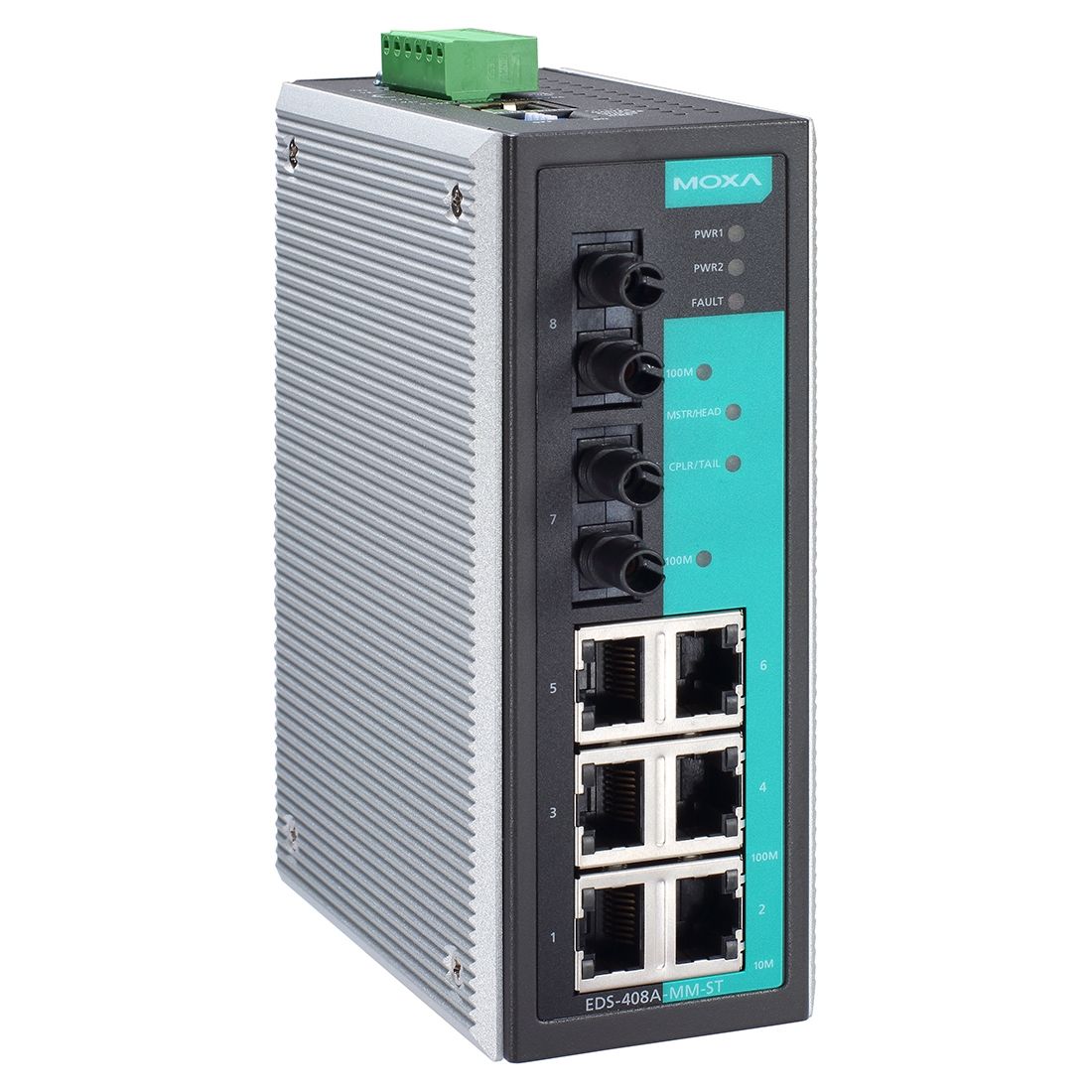

Moxa’s EDS-408A 3 Fiber series are 8-port managed Ethernet switches with three optical fiber ports in a slim form factor design. The unique 3 fiber port feature makes the EDS-408A 3 Fiber series ideal for industrial applications, such as widely dispersed wind farm networks that need more long-haul transmission capability in a standalone Ethernet switch. Fiber transmission offers the benefit of greater EMI protection to prevent unstable network transmissions and data loss. The EDS-408A 3 Fiber series is designed for completely fan-less operation in a wide temperature range from -40 to 75°C. In addition, the switches support a variety of useful management functions, such as Turbo Ring, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay.
