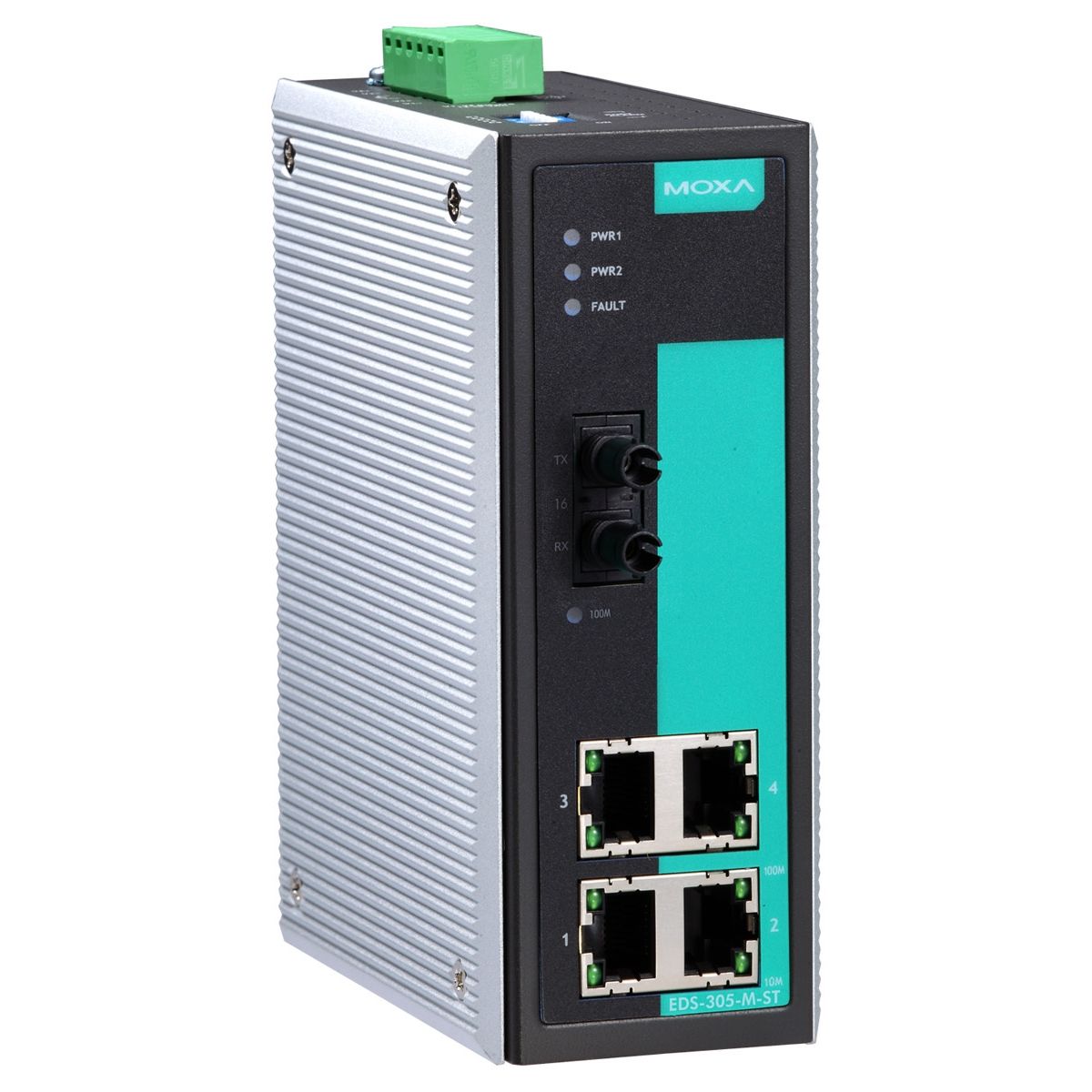

EDS-305-M-ST-T

4x 10/100BaseT(X) + 1x multi porty, -40~75°C

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6281064 Produktové číslo: EDS-305-M-ST-T Kategorie: Výrobce: MOXA
Poptat produkt
• Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector
• Redundant dual 24 VDC power inputs
• Relay output warning for power failure and port break alarm
• Broadcast storm protection
• Transparent transmission of VLAN tagged packets
• operating temperature: -40 to 75°C

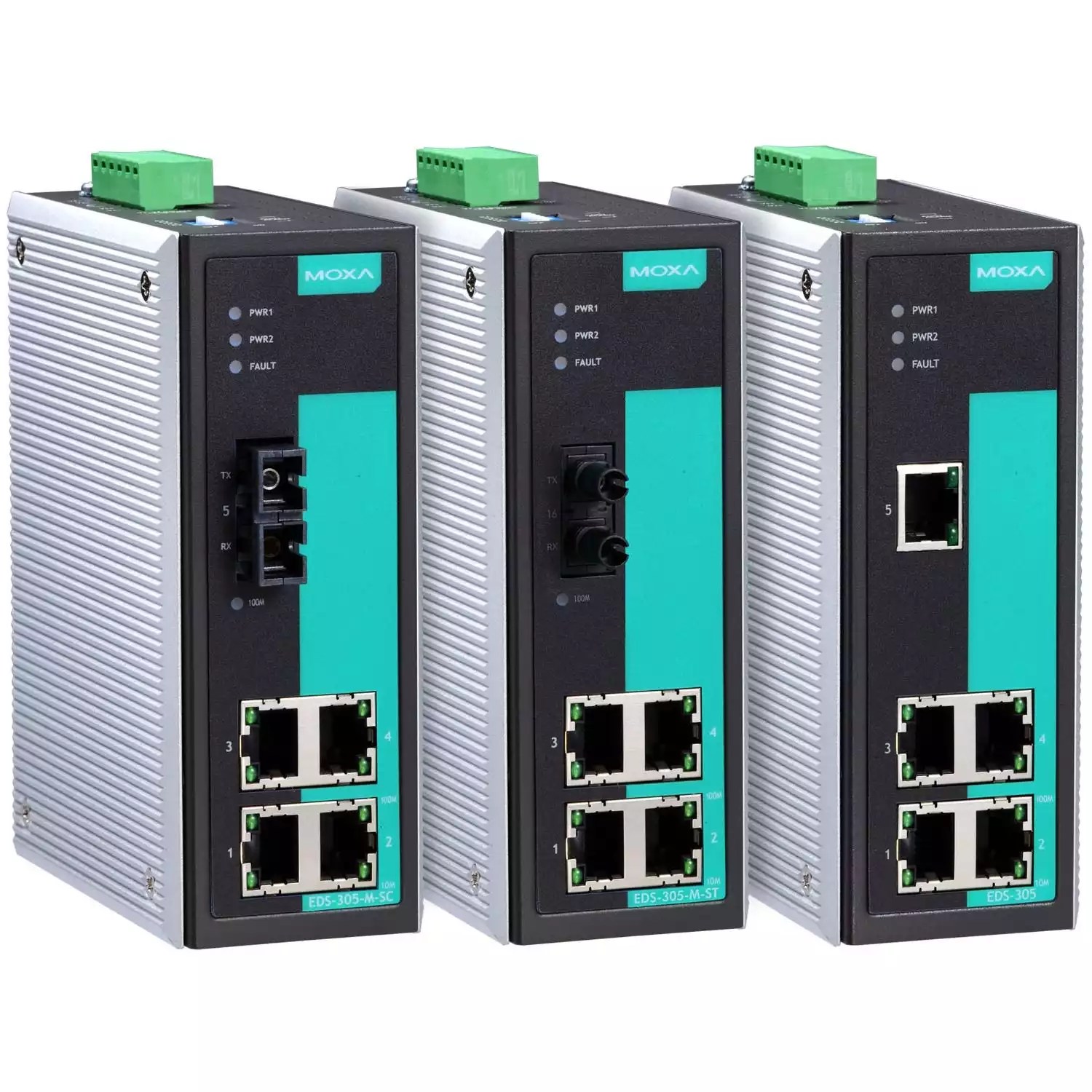

The EDS-305/308 are 5-port and 8-port Ethernet switches that provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations (Class I, Div. 2/ATEX). The switches comply with FCC, TÜV, UL, and CE standards, and come in two model types. Standard operating temperature range models (0 to 60°C) and wide operating temperature range models (-40 to 75°C). Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-305/308 switches can be installed easily on a DIN-Rail or in a distribution box.
Výrobce

Moxa

Certifikace

ATEX

Gigabit Ethernet

Ne

Manažovatelné

Ne

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

5

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ne
