ADAM-6520-BE

5-port 10/100 Mbps Industrial Switch

Pro zobrazení cen se musíte přihlásit nebo zaregistrovat.

Číslo zboží: GA55501022 Produktové číslo: ADAM-6520-BE Kategorie: Výrobce:
Poptat produkt
• 5-port Industrial 10/100 Mbps Ethernet Switch
• Supports full/half duplex flow control
• Supports MDI/MDI-X auto crossover
• Provides broadcast storm protection
• Embedded with a switch controller, supports auto-negotiation
• Supports +10 ~ 30 VDC voltage power input
• Provides surge (EFT) protection 3000VDC for power line (ADAM-6520L not equipped)
• Supports 4,000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
• Provides flexible mounting: DIN-rail, Wall, Stack
• Supports wide operating temperature range : -40 ~ 85° C

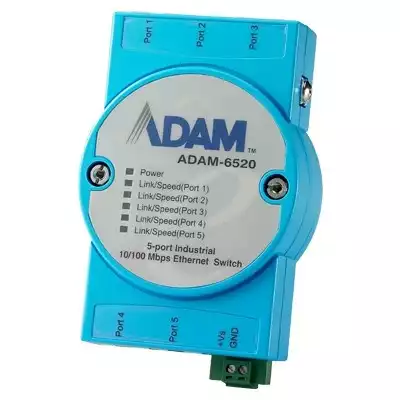

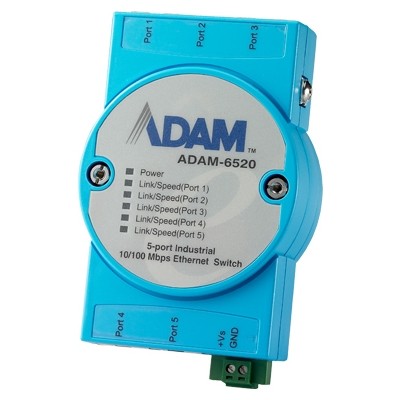

ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates. (Auto-negotiation). Justlkie any other product in the ADAM family, ADAM-6520 can be mounted in three different ways: DIN rail, Wall and Stack. Solid industrial-grade design assures reliable operation in common application areas like: semi-conductor factories, inventory control environments, assembly lines, manufacturing and many more. All modules support a wide voltage range of +10 ~ 70°, while ADAM-6520 from -40 ~ 85°. This permits them to be functional in harsh environments. The six inclusive LED indicators make troubleshooting of the modules easier. Each prot has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnosis.
Hmotnost 0.29 kg
Rozměry (produktu / balení) 150 × 85 × 51 mm
Výrobce

Advantech

Certifikace

Nespecifikováno

Gigabit Ethernet

Ne

Manažovatelné

Ne

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ne

Počet portů

5

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ne

SFP slot

Ne

Datasheet

Stáhnout datasheet:

3D Model

[canvasio3D width = ‚830‘ height = ‚600‘ border = ‚0‘ borderCol = ‚#F6F6F6‘ dropShadow = ‚0‘ backCol = ‚#FFFFFF‘ backImg = ‚/wp-content/themes/acipc-eshop/images/3D-background.jpg‘ mouse = ‚on‘ rollMode = ‚off‘ rollSpeedH = ‚0‘ rollSpeedV = ‚0‘ objPath = ‚https://eshop.autocont-ipc.cz/images/GA55501022/3dmodel/adam-6520-be.stl‘ objScale = ‚0.5‘ objColor = ‚#5c5c5c‘ lightSet = ‚7‘ reflection = ‚custom1‘ refVal = ‚7‘ objShadow = ‚on‘ floor = ‚off‘ floorHeight = ’42‘ lightRotate = ‚off‘ vector = ‚off‘ mousewheel = ‚on‘ Help = ‚off‘ loadingText = ‚Načítání 3D modelu, prosím čekejte…‘][/canvasio3D]
* Upozornění: 3D model slouží pouze pro ilustrační účely. Některé detaily nemusí být vyobrazeny. Design zařízení se může kdykoliv bez předchozího upozornění změnit.
