PCIE-2220NP-00A1E

2-ports 10G fiber NIC (SFP+ ) w Intel 82599ES

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0003993 Produktové číslo: PCIE-2220NP-00A1E Kategorie: Výrobce: Advantech
Poptat produkt

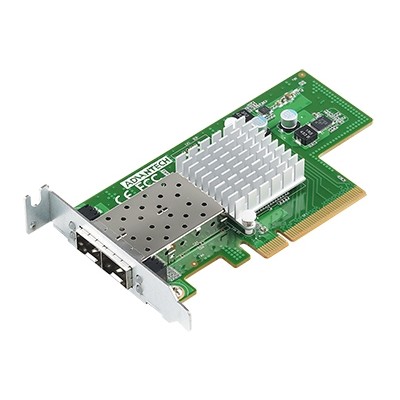

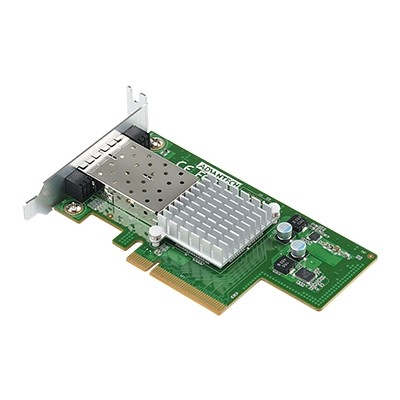

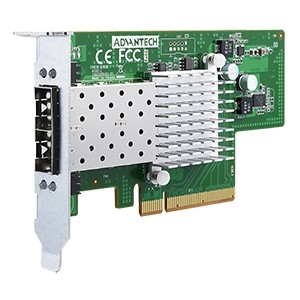

Dual Port Fiber 10GbE PCI Express Server Adapter with Intel(R) 82599ES

Advantech’s PCIE-2220 is a low-profile dual port 10GbE Ethernet PCI Express server adapter based on the Intel(R) 82599ES 10 Gigabit Ethernet Controller. By supporting a PCI Express gen. 2 x8 host interface, this adapter provides sufficient bandwidth for line rate traffic on both 10GbE ports. Two SFP ports can be configured to support a variety of optical transceivers such as 10GBASE-SR and 10GBASE-LR optical modules as well as direct attach cables. Improved support for virtualization, including VMDq and SR-IOV make the PCIE-2220 a perfect fit for virtualized environments and applications with network overlays. PCIE-2220 is an ideal network interface solution for multi-tenant environments, Network Function Virtualization as well as networking applications such as WAN optimization and cyber security.

Vlastnosti:
  • 1 x Intel(R) 82599ES 10GbE Ethernet controller
  • 2 x 10GbE SFP+ ports
  • PCIe gen. 2 x8 host interface
  • Supports 10GBASE-SR and 10GBASE-LR
  • Supports SR-IOV based virtualization
  • Low profile and full height form factors
Hmotnost 0.07 kg
Rozměry (produktu / balení) 174 × 144 × 53 mm
Výrobce

Advantech

Počet kanálů

2

Rozhraní

PCIe

Typ vstupů

Žádné

Typ výstupů

Žádné

Datasheet

Stáhnout datasheet:
