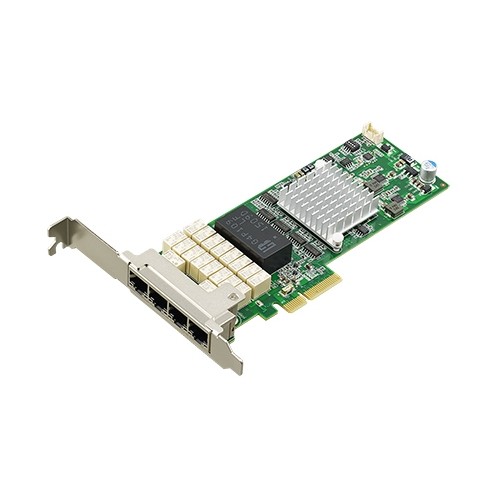

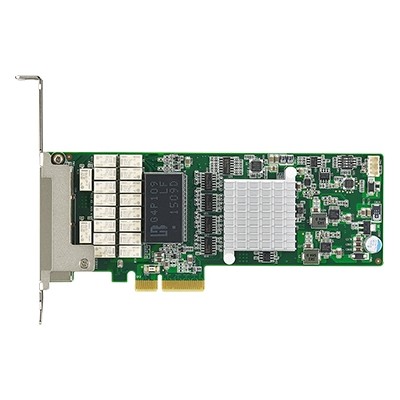

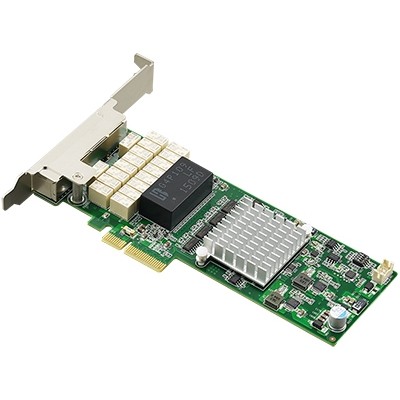

PCIE-2131NP-00A1E

4-ports 1G copper NIC w Intel I350-AM4

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0003991 Produktové číslo: PCIE-2131NP-00A1E Kategorie: Výrobce: Advantech
Poptat produkt
Quad Port Copper Bypass Gigabit Ethernet PCI Express Server Adapter with Intel(R) I350

Advantech’s PCIE-2131 is a low-profile quad port Gigabit Ethernet PCI Express server adapter based on the Intel(R) Ethernet Controller I350 Series. By supporting a PCI Express gen. 2 x4 host interface, this adapter provides sufficient bandwidth for line rate traffic on all Gigabit Ethernet ports. Improved support for virtualization, including VMDq and SR-IOV make the PCIE-2131 a perfect fit for virtualized environments and applications with network overlays. PCIE-2131 can be used to achieve high densities of network interfaces on servers and platforms for networking as well as industrial applications.

Vlastnosti:
  • 1 x Intel(R) Ethernet Controller I350-AM4

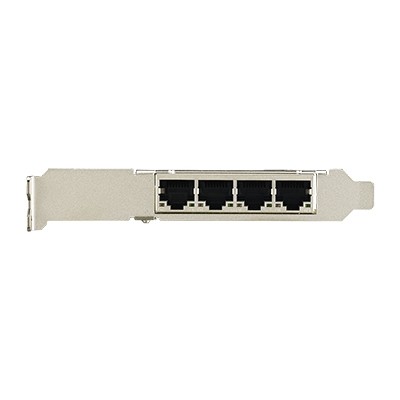

  • 4 x GbE RJ45 ports / (optional) 2 x GbE RJ45 ports
  • PCIe gen. 2 x4
  • Supports SR-IOV based virtualization
  • Low profile and full height form factors
  • Advanced LAN bypass
  • PCIE-2131BP-00A1E: Quad GbE RJ45 port w/ LAN bypass
  • PCIE-2131NP-00A1E: Quad GbE RJ45 port w/o LAN bypass
  • PCIE-2131NP-01A1E: Dual GbE RJ45 port w/o LAN bypass
Hmotnost 0.125 kg
Rozměry (produktu / balení) 265 × 195 × 60 mm
Výrobce

Advantech

Počet kanálů

4

Rozhraní

PCIe

Typ vstupů

Žádné

Typ výstupů

Žádné

Datasheet

Stáhnout datasheet:
