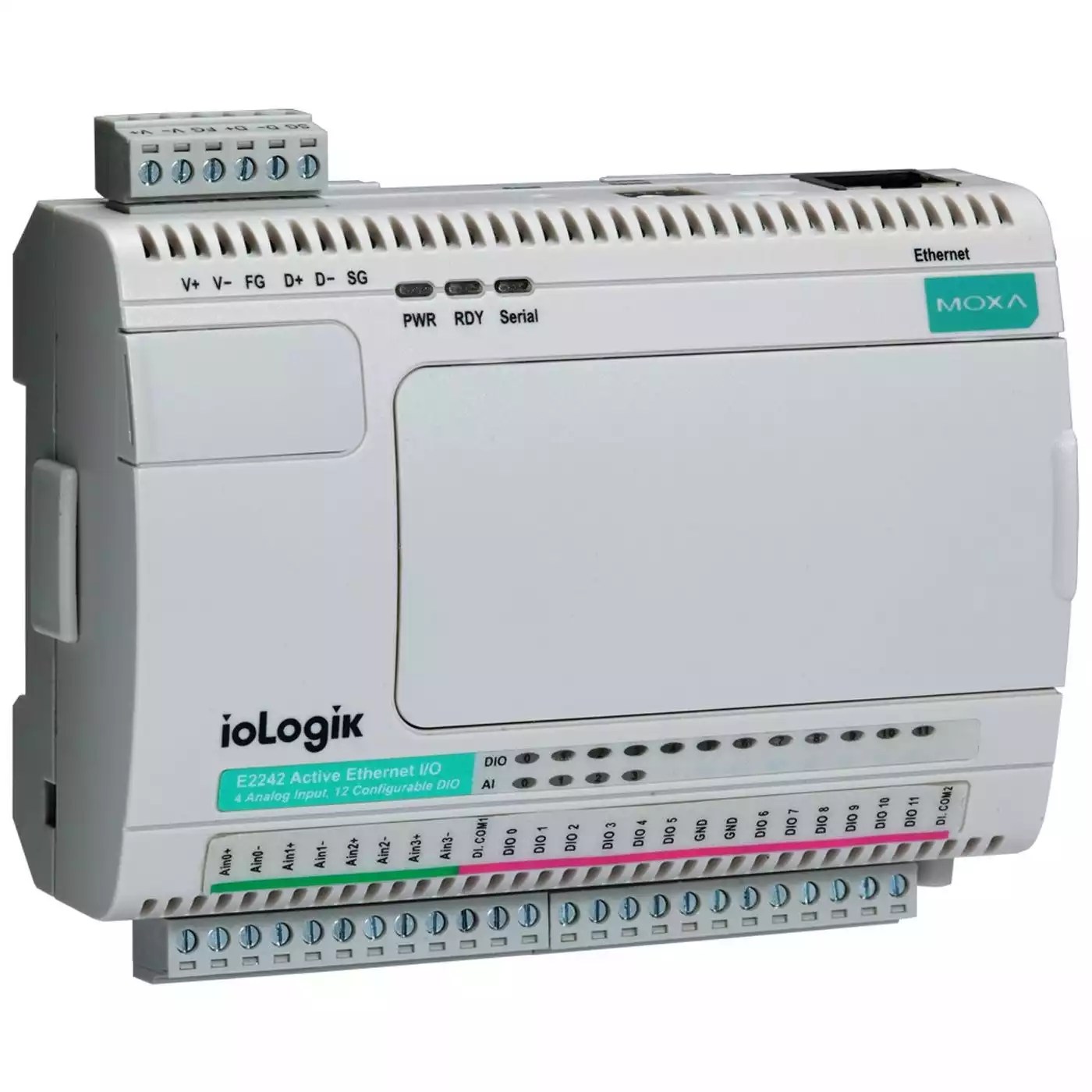

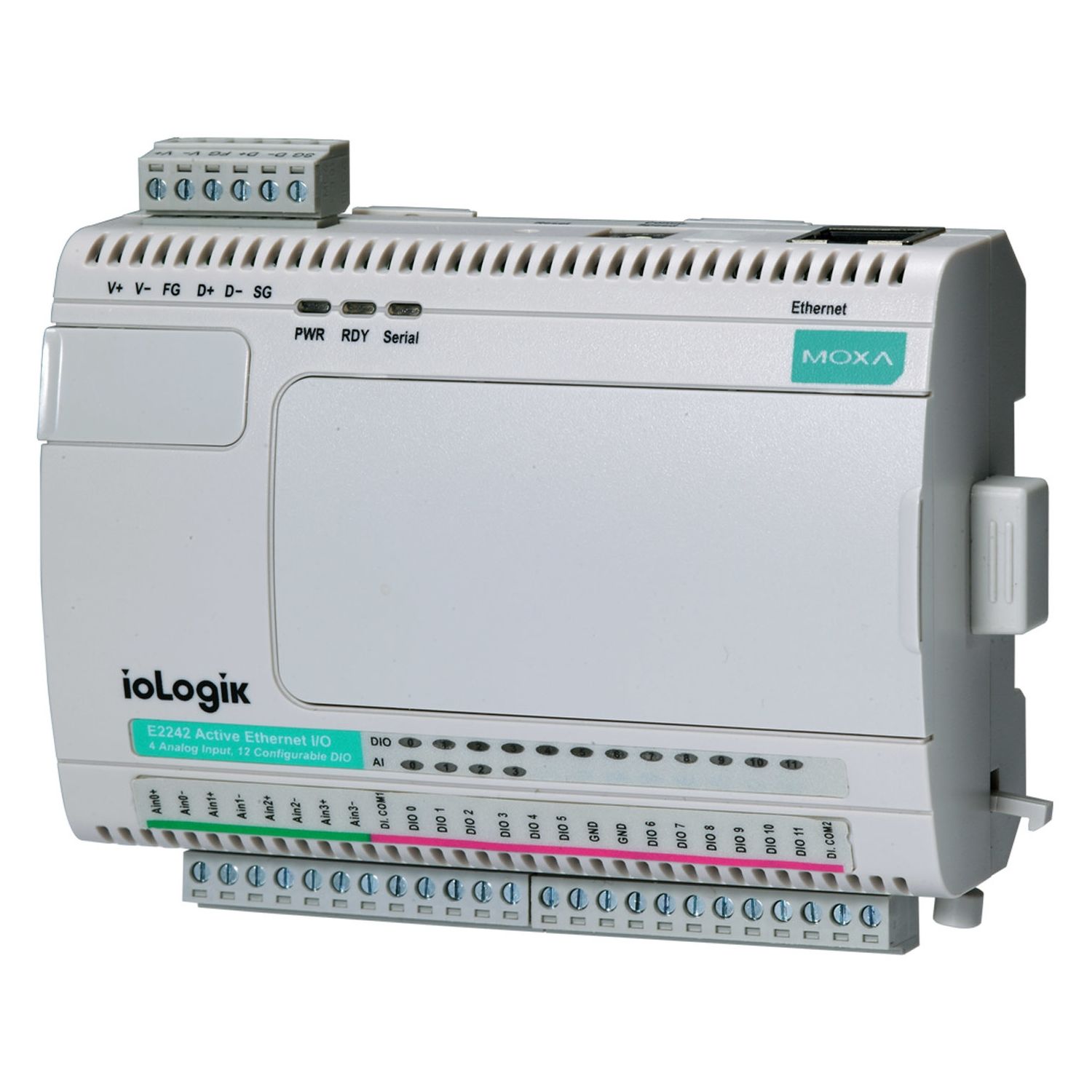

ioLogik E2242-T

4x AI, 12x configurable DIO, -40~75°C

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: G6271045 Produktové číslo: ioLogik E2242-TKategorie: Výrobce: MOXA
Poptat produkt
• Ethernet Micro RTU Controller with 4 analog inputs and 12 configurable DIOs
• Front-end intelligence that supports 24 Click&Go™ rules
• Active Messaging with real-time stamp, including SMS, SNMP Trap with I/O status, TCP, and email
• Supports SNMPv1/v2c/v3 protocol
• I/O peer-to-peer function
• Built-in web console
• PC utility: Auto detection of installed modules
• Windows/WinCE VB/VC.NET and Linux C APIs
• -40 to 75°C operating temperature

Moxa’s ioLogik E2200 is a new type of Ethernet micro RTU controller, which is a PC-based data acquisition and control device that uses proactive, event-based reporting to control I/O devices. Unlike traditional RTUs, which are passive and must poll for data, Moxa’s ioLogik E2200 series with Active OPC Server makes seamless connection with SCADA systems a reality. In addition, SNMP is used for communicating with an NMS (Network Management System) for IT field users. The I/O status of an Ethernet micro RTU controller can be reported and controlled automatically on-site based on user specified conditions. This report-by-exception approach, which is new to PC-based monitoring, requires far less bandwidth than traditional polling methods.
Výrobce

Moxa

Konektor vstupů

Svorkovnice

Konektor výstupů

Svorkovnice

Počet kanálů

16

Typ vstupů

Analogové, Digitální

Typ výstupů

Analogové, Digitální

Datasheet

Stáhnout datasheet:
