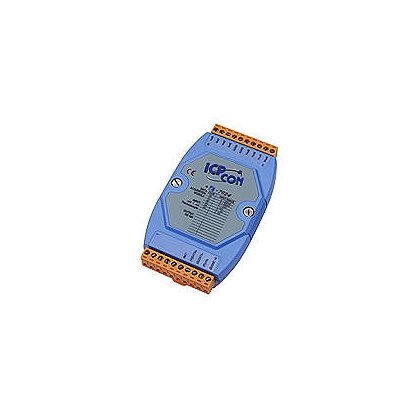

The I-7024 is a 14-bit 4-channel analog output module that provides current and voltage outputs. There are options for power-on values and safe values. It features 3000 VDC intra-module isolation.
The I-7024R is the same as the I-7024 and provides additional 5-channel digital inputs and 4 KV ESD protection on each terminal.
The M-7024/M-7024R support Modbus RTU and DCON protocols and can be confi gured via software. Their hardware specifi cations are the same as those of the I-7024/I-7024R.
Features:
- 4-channel Analog Output
- Software Selectable Current or Voltage Output
- 14-bit Resolution
- Power-on Value Setting
- Safe Value Setting
- 3000 VDC Intra-Module Isolation
- Programmable Output Slope
- Dual Watchdog
- Wide Operating Temperature Range: -25 ~ +75°C
| CPU Module |
| Watchdog Timer |
Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
+2 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Output |
| Channels |
4 |
| Type |
Voltage
Current |
| Range |
Voltage: 0 ~ 5 V, +5 V, 0 ~ 10 V, +10 V
Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution |
14-bit |
| Accuracy |
0.1% |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
10 ms |
| Power on Value |
Yes |
| Safe Value |
Yes |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
2.4 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
