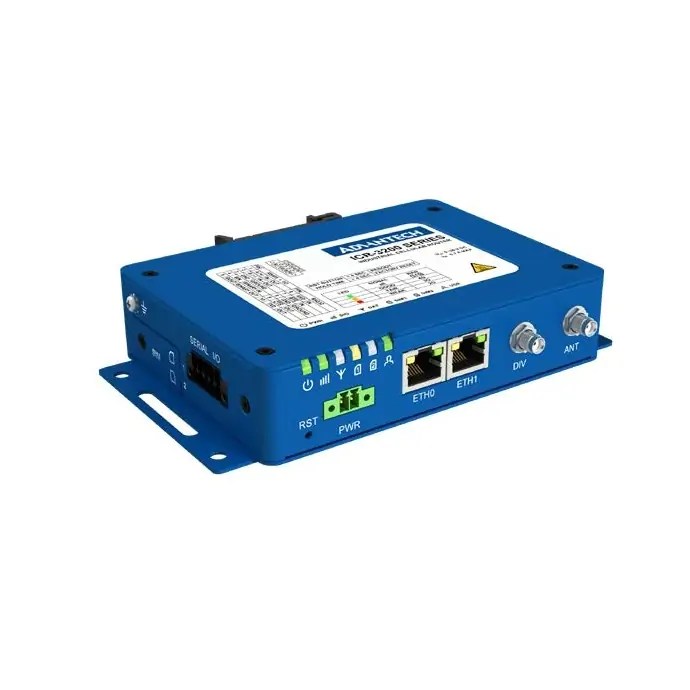

ICR-3241W

ICR-3200, NAM, 2x ETH, 1x RS232, 1x RS485, WIFI, Metal, No ACC

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0006326 Produktové číslo: ICR-3241W Kategorie: Výrobce: Advantech
Poptat produkt
The ICR-3200 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks, industrial PCs, HMIs, traffic controllers, meters, UPS systems, and much more. With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps, the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots. In addition to its two independent or switched Ethernet ports, serial ports RS232 and RS485, ICR-3200 has built-in digital I/O connectivity, backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM. Built-in GNSS chipset provides information about the accurate position of the router. An optional built-in Wi-Fi module is also available, with 802.11a,b,g,n,ac modes and MO-MIMO support is appropriate for on-board Wi-Fi transport applications.

4G LTE Cat.4 VPN Gateway for Industrial IoT applications
LTE B2, B4, B5, B12, B13, B14, B66, B71
Carriers support; Verizon, AT&T, T-Mobile, FirstNet (Public Safety)
Powerful CPU with 1.3 GB storage to host customer SW applications
2× SIM with cover, Dual SIM + eSIM
2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
Wi-Fi 802.11ac using MU-MIMO technology
GNSS receiver
Robust metal cover with DIN and Wall mount options
Operational temperature range from -40 °C to +75 °C
Sleep mode & Power ignition & Backup real time clock
Advanced networking, Diagnostics, VPN support, Firewall
Hmotnost 0.5 kg
Výrobce

Advantech
