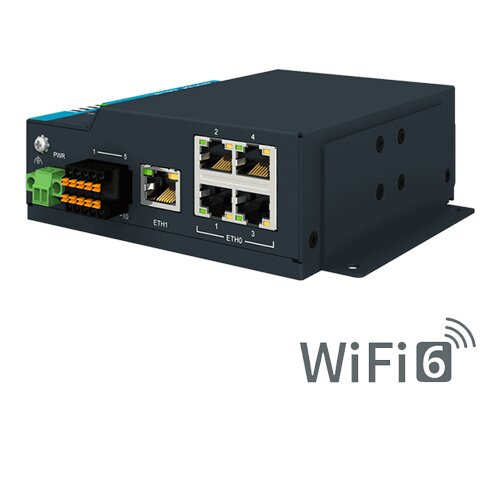

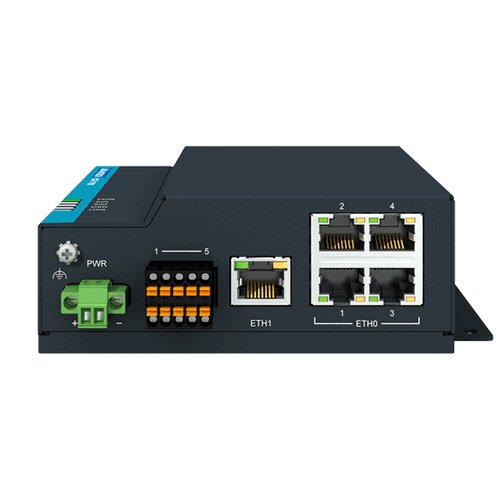

ICR-1745W-EU-A, EMEA/APAC/LATAM, 5G NR, 5× ETH, 1× RS232 / 1× RS485, WiFi 6, Antennas included
Introduction:
The industrial connectivity gateway Advantech ICR-1745W-EU-A is designed for wireless communication in demanding industrial environments. It enables reliable connection of IP devices and serial buses to a 5G NR network and delivers low latency for real-time data transmission. Thanks to its robust metal housing, wide operating temperature range, integrated WiFi 6, and support for advanced software features, it is an ideal solution for industrial M2M and IoT applications such as environmental monitoring, vending machines, surveillance, and remote management.
The gateway is equipped with five Gigabit Ethernet ports, serial communication interfaces, digital I/O, USB, and GNSS support. It also supports secure VPN communication, diagnostic tools, cloud-based management, and custom software development through the Linux-based ICR-OS platform.
Features:
- 5G NR cellular connectivity, Sub-6 GHz
- 3GPP Release 17, supports both NSA and SA modes
- 2× Micro SIM for redundancy
- 5× Ethernet 10/100/1000 Mbps
- Terminal block with 1× RS232 + 1× RS485 + 1× DI + 1× DO
- Integrated 2×2 WiFi 6 (IEEE 802.11ax), supports up to 32 clients
- Wide operating temperature range (-30 to +75 °C with WiFi)
- Robust metal housing with wall-mount kit
- Optional DIN-rail mounting
- Linux-based ICR-OS with support for custom applications and RouterApps
- Cloud-based remote management via WebAccess/DMP
Specifications:
- CPU: Quad-Core Cortex-A55 up to 2.2 GHz
- Memory: 1 GB RAM, 4 GB eMMC
- Ethernet: 5× RJ45, 10/100/1000 Mbps
- Serial lines: 1× RS232 (Tx, Rx, GND, RTS, CTS), 1× RS485 (Data-, Data+, GND)
- Digital I/O: 1× Digital Input, 1× Digital Output
- USB: 1× USB 2.0
- SIM slots: 2× Micro SIM (3FF)
- Cellular antennas: 4× SMA Female
- WiFi antennas: 2× R-SMA connectors
- GNSS antenna: 1× SMA Female
- GNSS systems: GPS, GLONASS, BDS, Galileo, QZSS
- Reset button: Reboot ( 4 s)
- LED indicators: PWR, SIG, SIM, USR, ETH0, ETH1
5G / LTE Performance:
- 5G NR NSA bands: n1 / n3 / n5 / n7 / n8 / n20 / n26 / n28 / n38 / n40 / n41 / n75 / n77 / n78
- 5G NR NSA transfer rate: up to 4.52 Gbps (DL) / 730 Mbps (UL)
- 5G NR SA bands: n1 / n3 / n5 / n7 / n8 / n20 / n26 / n28 / n38 / n40 / n41 / n75 / n77 / n78
- 5G NR SA transfer rate: up to 4.67 Gbps (DL) / 1.25 Gbps (UL)
- LTE: Cat 20 (DL), Cat 18 (UL)
- LTE transfer rate: up to 2 Gbps (DL) / 211 Mbps (UL)
- UMTS transfer rate: up to 42 Mbps (DL) / 5.76 Mbps (UL)
WiFi 6:
- IEEE 802.11 a/b/g/n/ac/ax
- 2.4 GHz / 5 GHz
- Data rate up to 1774.5 Mbps
- Security: WEP, TKIP, AES, WPA, WPA2, WPA3, 802.1X
- Modes: Access Point, Station, Multirole STA & AP
- Supports up to 32 clients
Environmental:
- Power supply: 9-48 VDC
- Power consumption: Idle 1.6 W / Average 4.1 W / Maximum 10 W
- Operating temperature: -30 to +75 °C (with WiFi)
- Storage temperature: -40 to +85 °C
- Humidity: 5 to 95 %
- Protection: IP30
Physical characteristics:
- Dimensions: 116 × 44 × 113.5 mm
- Weight: 655 g
- Enclosure: Metal case with aluminum heatsink and grounding screw
- Mounting: Wall mount included, DIN-rail optional
Software & Security:
- ICR-OS open Linux platform
- Support for custom applications in BASH and C/C++
- Support for RouterApps to extend firmware functionality
- VPN support for secure remote communication
- Diagnostic functions including automatic connection monitoring
- Automatic restart in case of connection loss
- Hardware watchdog for system status monitoring
- Remote provisioning, monitoring, and VPN management via WebAccess/DMP
Standards & Certifications:
- Radio: EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 301 908-25, EN 303 413, EN 300 328, EN 301 893, EN 303 687
- EMC: EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 301 489-52, EN 610000-6-2, EN 610000-6-3, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
- Safety: EN 62368-1
- Cybersecurity: EN 18031-1
- National approvals: CE, UKCA
- Mechanical: EN 60529, EN 60068-2-27, EN 60068-2-64
- Climatic: EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-78
- Environmental: REACH, RoHS3, WEEE
- Cellular module approvals: CE / RCM / GCF
Package contents:
- 4× 5G/LTE antennas
- 2× WiFi antennas
- 10-pin terminal block connector
- 2-pin power connector
- Wall-mount bracket
Note:
- Optional DIN-rail mounting kit available separately
- Availability may vary by region; please consult your local sales representative
- All product specifications are subject to change without notice
