IntelR Core i7-14700T 2U Rack Server
Vlastnosti:
- Intel® Core™ i7 processor 14700T 33M Cache, up to 5.20 GHz Intel vPro® Essentials Platform Eligibility
- Support TPM 2.0 Function
- Two front 2.5” SATAIII disk drive for RAID 0/1 support
- Fan custom cooling system for i7 Server PC
- With NVIDIA graphics cards, it can process large of complex data to implement AI functions at the edge
- IEC 618503, IEC60068264, IEC 6006822
System Specification
| Processor | Intel® Core™ i7 processor 14700T 33M Cache, up to 5.20 GHz Intel® Core™ i9 processor 14900T 36M Cache, up to 5.50 GHz (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x SO-DIMM DDR5 4800 MHz, 8+8GB 16+16GB (Optional) 32+32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 2 x SATA III for 2.5″ SSD/HDD(RAID support) (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Graphic Card | NVIDIA® RTX A2000 Ada 12GB Graphic Card (Optional) NVIDIA® RTX 4000 SFF Ada Graphic Card (Optional) NVIDIA® GeForce RTX 4060 8GB Graphic Card (Optional) NVIDIA® GEFORCE RTX 4060 Graphic Card (Optional) NVIDIA® RTX 4000 Ada Graphic Card (Optional) |
Mechanical
| Dimension | 482.6 x 300 x 88 mm |
| Weight | 7.8 kg |
| Mounting | 2U Rack mounting |
| Enclosure | Electroplated steel |
| Cooling System | Fan Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |

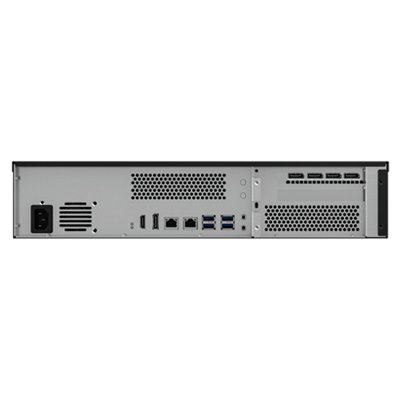

IO Ports
| Power Input | 1 x 3 Pin Plug for AC Input |
| USB Port | Front side 2 x USB2.0 (Type-A) Rear side 4 x USB 3.2 Gen2x1 (10Gbps) (Type-A) |
| Video | 1 x DP1.4a DP++ , Max resolution up to 4096×2160@60Hz 1 x HDMI 2.0b , Max resolution up to 4096×2160@60Hz (Optional) |
| Audio | Mic in Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) 1 x PCIe x16 slot |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage 2 x LED Indicator for LAN |
Control
| Button | 1 x Front side Power Switch 1 x Rear side Power Switch(power input control) 1 x Clear CMOS Button |
Accessory
| Accessory | Power Cord Quick Start Guide |
