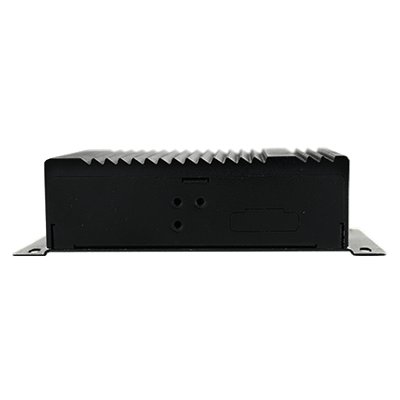

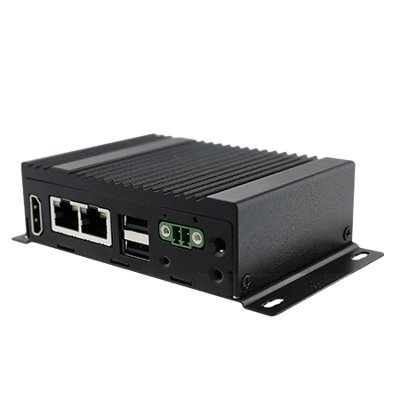

Intel® Pentium® N4200 Marine Computer
Vlastnosti:
- Intel® Apollo Lake N4200 Computer
- Fanless cooling system
- Compact size 100 x 70 x 31 mm(w/o mounting bracket)
- Expansion module design
- Various mounting options: desk, wall, VESA, DIN-Rail
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | WWAN (Optional) |
| Expansion Port | EACWSLT-222 WWAN Expansion Board (Single SIM Slot) EACWSLT-231 3-port RS232/422/485 w/ isolation EACWSLT-232 16-Channel Digital I/O w/ isolation EACWSLT-233 2-port CANBUS w/ isolation EACWLST-234 3 -port USB 2.0 EACWLST-235 2-port RS232/422/485 w/ isolation EACWLST-236 2-port Giga-LAN EACWLST-237 WWAN Expansion Board (Dual SIM Slot) |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 4GB LPDDR4 2400 MHz |
| Storage | eMMC: Onboard 32 GB eMMC: Onboard 64 GB (Optional) eMMC: Onboard 128 GB (Optional) mSATA SSD 128GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Mechanical
| Dimension | 100 (W) x 70 (H) x 31(D) mm(One layer) 100 (W) x 70 (H) x 61(D) mm(Double layer) |
| Weight | 0.4 kg (One layer), 0.5 kg (Double layer) |
| Mounting | Desk Mounting & Wall Mounting VESA Mounting (Optional) DIN-Rail Mounting (Optional) |
| Enclosure | Metal |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 30% to 90% (non-condensing) |
| Operating Temperature | 0~55°C |
| Storage Temperature | -15~70°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP30 |
Certification
| Certification | CE, FCC Microsoft Azure Certified for IoT AWS lot Greengrass Certified DNV GL |

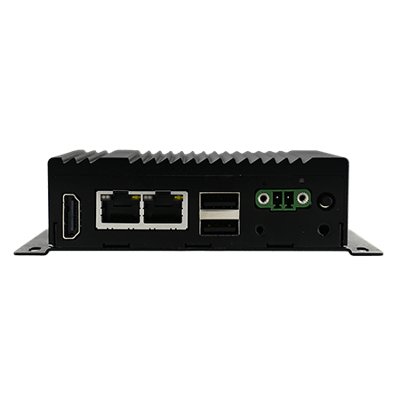

IO Ports
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Video | 1 x HDMI 1.4 (Optional) |
| Expansion Port | mPCIe: 1 x Full-size mPCIe slot USB Wafer : 2 x USB Wafer |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power |
| mini PCIe | 1 x Mini PCIE |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | Quick Start Guide Driver CD AC to DC Adapter 12V/36W Terminal Block 2 pin to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block 2 pin connector WLAN External Antenna (For WLAN sku) WWAN External Antenna (For WWAN sku) VESA Mounting Kit (Optional) DIN Rail Mounting Kit (Optional) |
Power
| Power Rating | 9V to 36V DC, 2-Pin Terminal Block |
| Consumption | 25W (Typical) |
