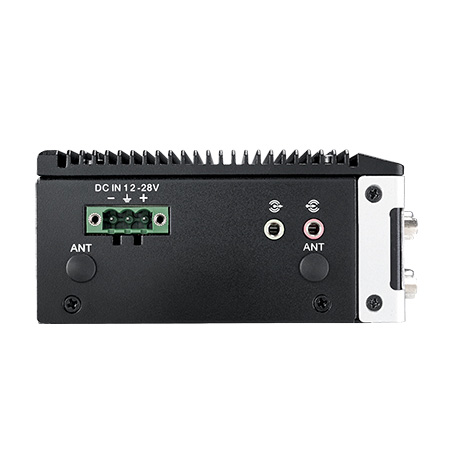

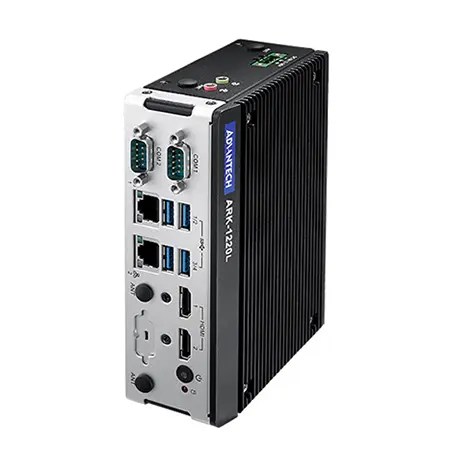

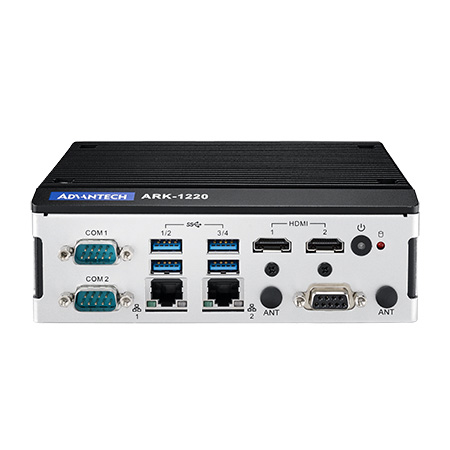

ARK-1220L-S6A2
4U Rackmount Chassis with Visual Alarm Notification
- Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz
- DIN-Rail system with essential I/O ports on front-side bezel
- 2 x Intel GbE and 4 x USB 3.0
- Dual HDMI display up to 4K resolution
- 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
- 1 x 2.5” SATA III SSD and 1 x full-size mSATA*
- 12V ~ 28V wide range power input
- Advantech WISE-PaaS support
- No RED Certification
Processor
| CPU | Intel Atom E3940 Quad Core Soc |
| Core Number | 4 |
| Frequency | 1.6 GHz, turbo burst 1.8GHz |
| BIOS | AMI EFI 64 Mbit |
Memory
| Technology | DDR3L 1866 MHz |
| Max. Capacity | 8 GB |
| Socket | 2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory |
Graphics
| Chipset | Intel HD Graphics 500, CPU integrated |
| Graphic Engine | Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 |
| HDMI | HDMI1 : 3840 x 2160 @ 30Hz; HDMI2 : 3840 x 2160 @ 30Hz |
| Dual Display | HDMI1 + HDMI2 |
Ethernet
| LAN1 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
| LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
Audio
| Interface | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
Others
| Watchdog timer | 255 levels timer interval, setup by software |
| TPM | TPM 2.0 (Optional by project support) |
I/O
| Serial Port | 2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply |
| USB | 4 x USB 3.0 |
| GPIO | 8-bit Programmable DIO (Optional) |
Expansion
| Mini PCIe | 1 x Full-size mPCIe with SIM holder |
| M.2 | 1 x M.2 2230 E key for WIFI module |
Storage
| 2.5″ HDD/SSD | 1 x 2.5″ SATAIII Drive bay (compatible with 15mm height) |
| mSATA | 1 x Full-size mSATA (*share with mPCIe slot) |
Others
| Watchdog Timer | 255 levels timer interval, setup by software |
| TPM | SLB9665XQ2.0 FW5.62 (By T-PN, MOQ 30pcs) |
Power
| Power Type | AT / ATX |
| Input Voltage | 12 ~ 28 VDC |
| Power Adaptor | AC to DC, 60W (Optional) |
| Power Consumption | TBD |
Environment
| Operating Temperature | With extended temp. peripherals: -30 ~ 70 C (-22 ~ 158F) w/ turbo burst off with 0.7 m/s air flow; With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104°F) with 0.7 m/s air flow |
| Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Relative Humidity | 95% @ 40° C (non-condensing) |
| Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
Certification
| EMC | CE/FCC Class B, CCC, BSMI |
| Safety Certifications | CB, UL, CCC, BSMI |
