- NVIDIA® Jetson AGX Orin™ (Up to 275TOPS)
- 1 x 10G LAN, 1 x Giga LAN
- 8 x GMSL2 with FAKRA Connectors
- 4 x GigE LAN with PoE
- 1 x Isolated 8-in/8-out DIO
- Wide Range 9V to 36V DC Power Input with Isolation
- Fanless, streamlined enclosure for highly efficient heat Dissipation
System Specification
| Processor | NVIDIA® Jetson AGX Orin™ AGX Orin 32GB: 8core Arm® Cortex®A78AE CPU (Default) AGX Orin 64GB: 12core Arm® Cortex®A78AE CPU (Optional) |
|---|---|
| Memory | AGX Orin 32GB: 32GB 256bit LPDDR5 204.8GB/s (Default) AGX Orin 64GB: 64GB 256bit LPDDR5 204.8GB/s (Optional) |
| Storage | 1 x 64GB eMMC 5.1 (Default) 2 x M.2 2280 Mkey NVMe SSD (Max 4 TB)(When the PoE function is enabled, only one 1 x SSD is supported) (Optional) 1 x MicroSD (Max 512GB) (Optional) 1 x 2.5" SSD/HDD (Optional) |
| Ethernet controller | 1 x 10Gbe LAN 1 x Giga LAN (Default) 4 x LAN support PSE IEEE 802.3af (Optional) |
| Security | TPM 2.0 |
| Operating System | Linux (Support NVIDIA Jetpack 6.2) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | Support (Optional) |
| GPS | Support (Optional) |
| Expansion Port | 1 x M.2 2230 E-key Slot (for WiFi+BT) 1 x M.2 3042/3052 B-key Slot (for 4G/5G) |
Mechanical
| Dimension | 250 x 170 x 91.5 mm |
|---|---|
| Mounting | Desk Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
|---|---|
| Operating Temperature | 30W TDP Mode: 0°C to 60°C (32°F to 140°F) 40/50W TDP Mode: 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 60°C |
Certification
| Certification | CE, FCC |
|---|
IO Ports

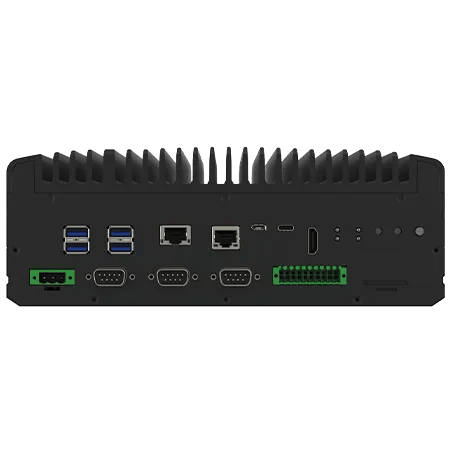

| USB Port | 4 x USB 3.2 Gen 2 (Type-A) 2 x USB2.0 (wafer) 1 x Micro USB for debug port 1 x USB Type-C for OS flash |
|---|---|
| Serial Port | 2 x DB9 for RS232(Rx/Tx/CTS/RTS)/RS422/RS485 |
| LAN | 1 x RJ45 for 10Gbe LAN 1 x RJ45 for Giga LAN (Default) 4 x RJ45 for GbE PoE 802.3af(PSE) (This function is mutually exclusive with GMSL) (Optional) |
| Video | 1 x HDMI 2.0b , Max resolution up to 3840×2160@30Hz (Optional) |
| SD Card Slot | 1 x MicroSD Slot(Max 512GB) |
| SIM Card Slot | 2 x nano SIM Card slot |
| Expansion Port | 1 x M.2 2230 E-key Slot (for WiFi+BT) 1 x M.2 3042/3052 B-key Slot (for 4G/5G) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for SDD |
| DIDO | 1 x Isolated 8in/8out DIO with 20-Pin Terminal block : 8 x Digital input channels with 2500 VDC isolation protection – Wet contact: Logic 0: 2 ~ 30 VDC/ Logic 1: 0 ~ 1 VDC – Dry contact: Logic 0: Shorted to GND/ Logic 1: Open 8 x Digital output channels – Output voltage: 5 ~ 30 VDC – Output capability sink: 500 mA ax./channel |
| CANBUS | 1 x DB9 for 2 Isolated CAN Bus support CAN FD |
| Power Input | 1 x Isolated 9~36V DC with 3-Pin Terminal Block |

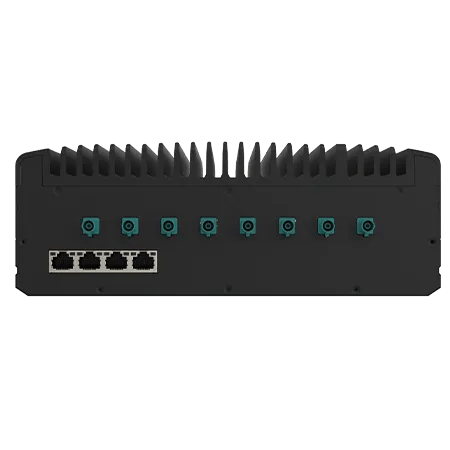

| GMSL | 8 x GMSL2 with FAKRAZ (This function is mutually exclusive with POE) (Optional) |
Control
| Button | 1 x Power Button 1 x Recovery Button 1 x Reset Button |
|---|
Accessory
| Accessory | 1 x Terminal Block 3-pin connector for Power 1 x Terminal Block 20-pin connector for DIDO 1 x Open Wire Cable Dest Mount Screws |
|---|
Power
| Power Rating | 9V to 36V DC |
|---|---|
| POE | PoE (PSE): follows IEEE 802.3af (15W) |
