Modular TPC – Computing Box Module with Intel Atom and Celeron CPU

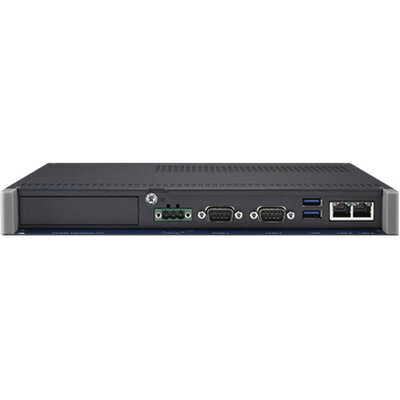

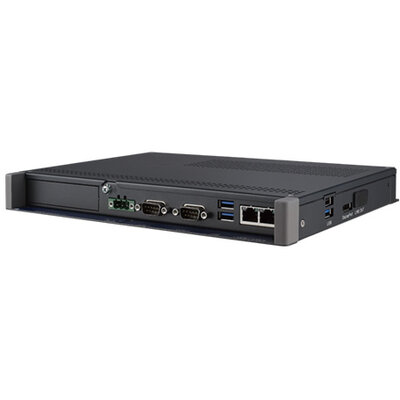

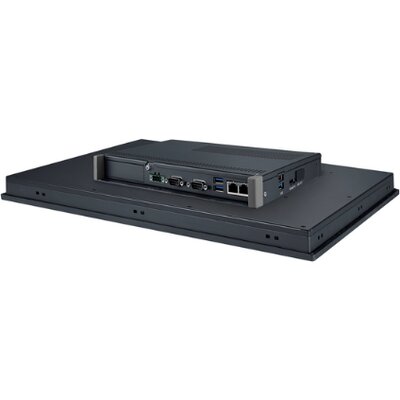

TPC-B300 computing box modules are powered by Intel® Atom™ X6425E/Celeron® J6412 Processors to provide compact and fanless control panel solutions that deliver high-performance computing. With a highly flexible modular design, TPC-B300 allows users to change the panel sizes (12"-23.8").
Vlastnosti:
- Computing Box powered by Intel® Atom™ X6425E/Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 1 x Full-size mini PCIe for iDoor expansion
- 1 x M.2 Key-E 2230 for WIFI + BT module
- 1 x M.2 Key-M 2280 for NVMe SSD (PCIe Gen 3 x 2)
- 1 x 2.5″ SATA SSD expansion
- 2 x 2.5Gb LAN
- Supports TPM2.0 hardware security
- Wide Temp Support. Range -20~60 °C (Atom™ X6425E)
