ARM A53 M Series Box PC
Vlastnosti:
- ARM A53 Quad Core 2.0GHz CPU
- 4GB LPDDR4, 32GB eMMC
- Supports 1xCOM, 2xUSB 2.0, 1xMicro USB, 1xLAN ,1xSD slot
- Elegant and slim mechanical design
- Support Android or Linux operating system
System Specification
| Processor | ARM A53 (Quad Core 2.0GHz) |
| Memory | 4GB LPDDR4 |
| Storage | eMMC: Onboard 32 GB |
| Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu (Optional) |
Mechanical
| Dimension | 205 x 110 x 55 mm |
| Weight | 1.1 kg |
| Enclosure | Desk Mount |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |

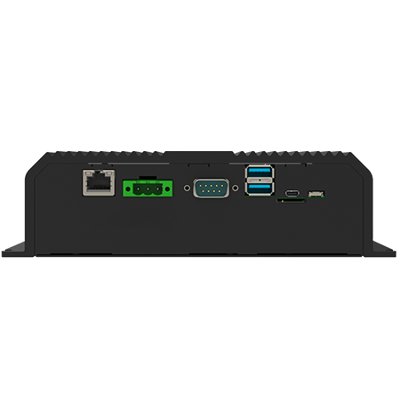

IO Ports
| Power Input | 1 x 3-Pin Terminal Block, 12V DC |
| USB Port | 2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
| Serial Port | 1 x RS232/422/485 |
| SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
| SIM Card Slot | 1 x Micro SIM Card Slot |
| Video | 1 x Micro HDMI (Optional) |
| LAN | 1 x RJ45, Optional PoE(PD, 802.3AT) |
Control
| Button | 1 x Power Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord |
Power
| Power Rating | 12V DC in |
