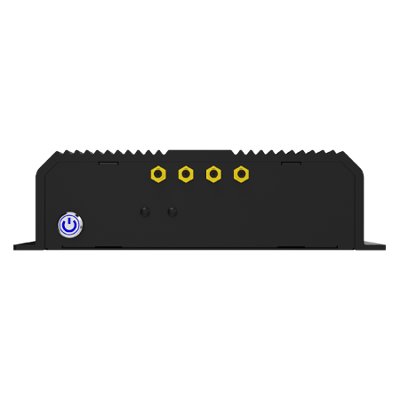

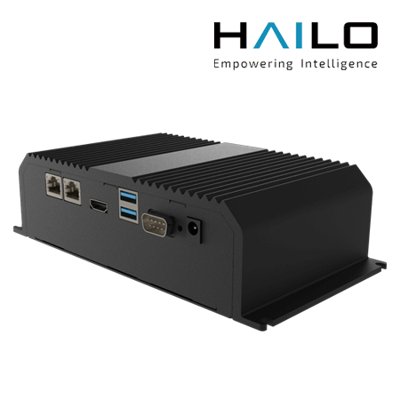

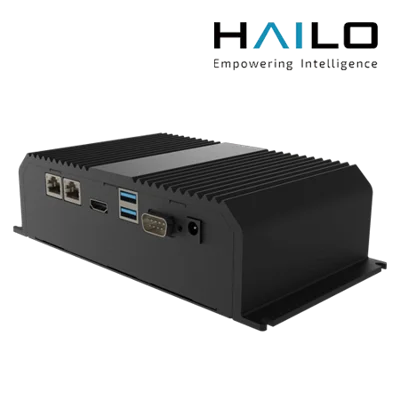

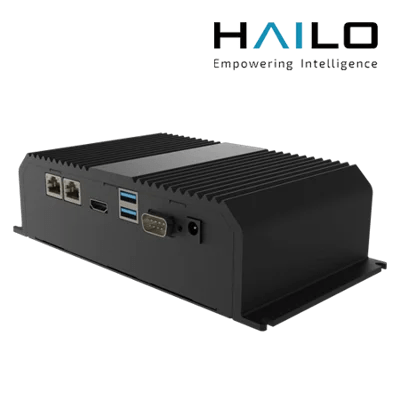

Edge AI Computer with Hailo-8 M.2 AI Acceleration Module
Vlastnosti:
- Intel Atom® x6413E Processor 1.5M Cache, up to 3.00 GHz
- Integrated 26 TOPS Hailo-8™ AI Processor with best power efficiency
- Low latency and high-efficiency AI inferencing on edge device
- 1 x DDR4 SO-DIMM 3200 MHz, max. 16GB
- Supports 2 x USB 3.2 Gen 2×1, Max. 3 x COM
- Elegant and slim mechanic
System Specification
| Processor | Intel Atom® x6413E ( up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 8GB 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 256GB 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
| AI Accelerator | Hailo 8™ AI accelerator module, up to 26 TOPS |
| Graphic Card | Hailo 8™ AI accelerator module, up to 26 TOPS |
Mechanical
| Dimension | 205 x 110 x 55 mm |
| Weight | 1.1 kg |
| Mounting | Desk Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |

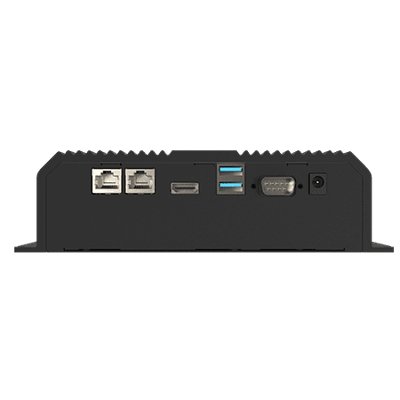

IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1~2 x RS232 (Optional) |
| Video | 1 x HDMI 2.0 (Optional) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
Control
| Button | 1 x Power Button |
Accessory
| Accessory | 1 x 100~240V AC to DC Adapter 1 x Power Cord 1 x Quick Start Guide 6 x M4*8 desk mount screws |
Power
| Power Rating | 12V DC |
