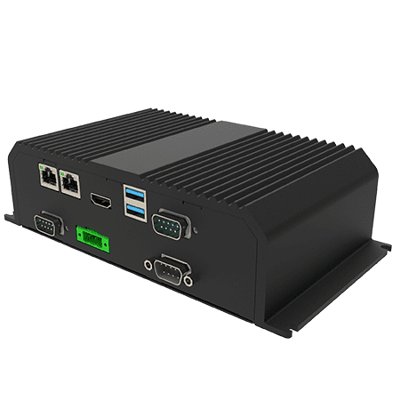

Intel® Pentium® N6415 Marine Computer
Vlastnosti:
- Intel® Elkhart Lake Pentium® N6415 Processor Dash panel PC
- 9~36V DC Power input acceptable
System Specification
| Processor | Intel®Pentium® N6415 (1.5M Cache, up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 256GB 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| IP rating | IP66 (Front Side) |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 3 x RS232 |
| Video | 1 x HDMI 2.0 (Optional) |
| LAN | 2 x RJ45-10/100/1000 Mbps |
Mechanical
| Dimension | 205 x 110 x 55 mm |
| Weight | 1.5 kg |
| Mounting | VESA Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Power
| Power Rating | 24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
Control

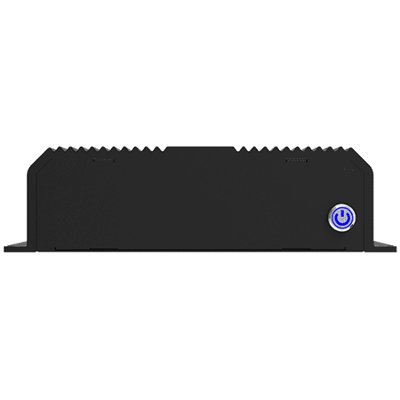

| Button | 1 x Power Button |
Accessory
| Accessory | Driver CD & User Manual AC to DC Adapter 12V/ 50W Power Cord 3 pin Terminal Block to DC Jack |
