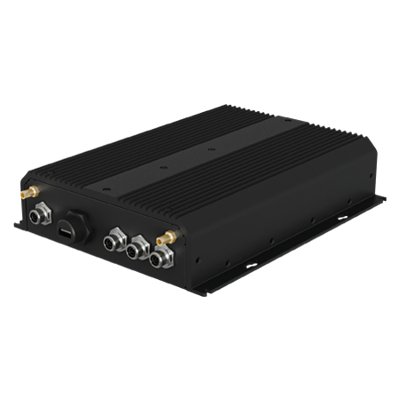

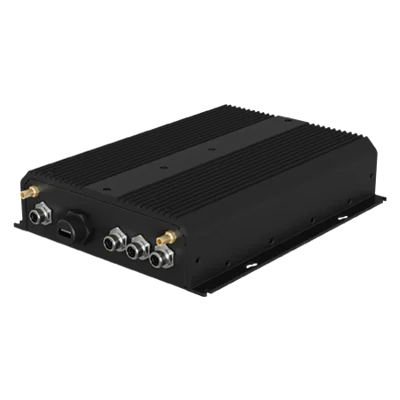

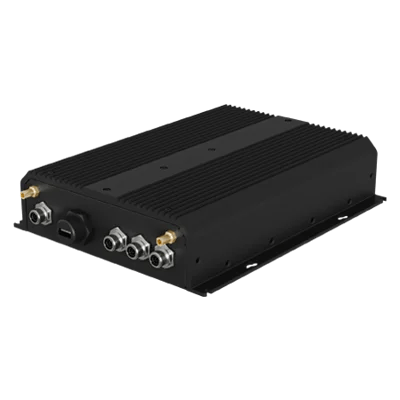

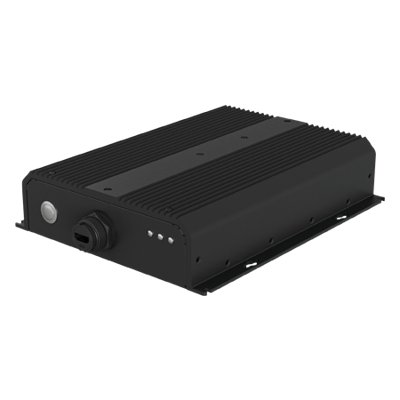

Waterproof Full IP65 EAC Box PC with M12 Connector, IntelR Core i5-1235U
Vlastnosti:
- Intel® 12th Generation Core™ i5-1235U Processor
- 1 x SO-DIMM, DDR5 4800 MHz (Max. 32GB)
- 1 x M.2 Key M Slot for M.2 2280 NVME SSD
- Full IP65 Rugged Embedded PC
- Full Aluminum Alloy Enclosure with fin
- Fnless design with M12 waterproof connector
- Wide Range 9 to 36V DC Input with isolation
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel® Core™ i5-1235U 3.3GHz(up to 4.40 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
Mechanical
| Dimension | 250 x 205 x 55 mm |
| Weight | 3.0 kg |
| Mounting | Desk mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |

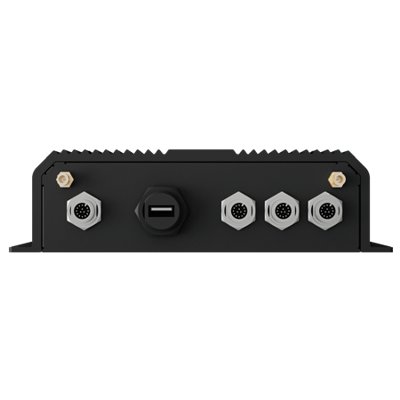

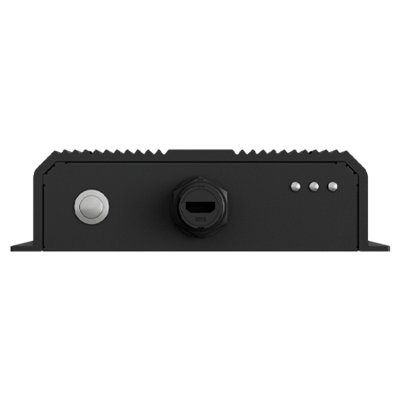

IO Ports
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 1 x Waterproof USB Type-A Connector with cover |
| Serial Port | 1 x M12 waterproof connector for RS232/RS422/RS485 (Default RS232) |
| Video | 1x Waterproof connector for HDMI output |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi Module) |
| LAN | 1 x M12 type connector for Giga LAN |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage 1 x LED Indicator for LAN |
Control
| Button | 1 x Power Button with LED Indicator |
Accessory
| Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External HDMI cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps RJ45 female-female converter |
| Optional Accessory | 100~240V AC to DC Adapter with waterproof connector (Optional) Power Cord (Optional) |
