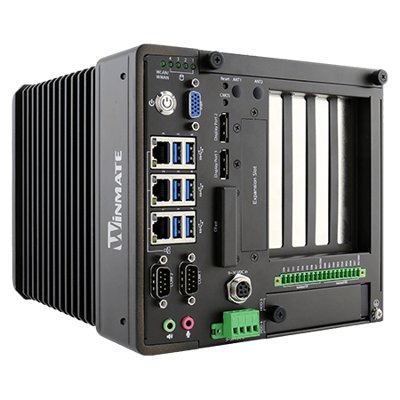

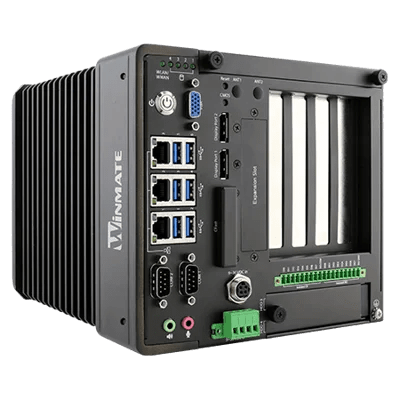

IntelR XeonR E3 Box PC
Vlastnosti:
- 6th Generation Intel® Xeon® E3, 7th Generation Core™ i7/i5/i3 Processors Box PC
- HD 4K resolution & 4U Height Design Box PC
- Flexibility, Connectivity and Multi-Expansion
- High Storage Density & Easy Maintenance
- 9-36V Wide voltage and -15 to 55 Celsius degrees wide temperature
System Specification
| Processor | Intel® Xeon® E3-1268L v5 (8M Cache, 2.40 GHz) Intel® Core™ i7-7700T (8M Cache, 2.9 GHz up to 3.80 GHz) Intel® Core™ i5-7500T (6M Cache, 2.7GHz up to 3.30 GHz) Intel® Core™ i3-7100T (4M Cache, 3.34 GHz) |
| Chipset | Intel® C236 |
| Memory | 2 x SO-DIMM, DDR4 2133 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x CFast 2.0 2 x Internal 2.5” SATA III interface 2 x External 2.5” SATA III interface Support RAID 0, 1, 5, 10 Default 1 x 2.5″ 500GB HDD |
| Ethernet controller | 2 x Intel® Ethernet Controller I210-AT + Intel® Ethernet Connection I219-LM |
| Security | TPM 1.2 |
| Operating System | Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) |
| WLAN | 802.11 a/b/g/n/ac (Optional) |
| BT | BT Support (Optional) |
| Expansion Port | Swappable 2.5” HDD/SSD Bay Slot |
Mechanical
| Dimension | 195 x 177 x 255 mm |
| Mounting | Panel Mount Table Mount Rack Mount |
| Enclosure | Metal Housing |
| Cooling System | Fan design |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
Certification
| Certification | CE, FCC |

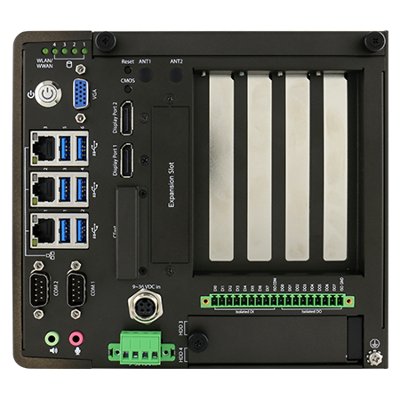

IO Ports
| USB Port | 6 x USB3.0 (Type-A) |
| Serial Port | 2 x RS232/422/485 w/ isolation (Default RS232) |
| Video | 1 x VGA 2 x DP1.2 |
| Audio | Mic in Line out |
| Expansion Port | 1 x mPCIe slot(for half size Wifi module) 1 x CFast 2.0 card slot Swappable 2.5” HDD/SSD Bay Slot SKU1 (1 PCIe3.0 x16, 1 PCIe3.0 x4, 1 PCI) SKU2 (1 PCIe3.0 x8, 1 PCIe3.0 x4, 1 PCI) |
| LAN | 3 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for Wifi |
| DIDO | Digital input: 8ch dry contact DI0 ~ DI7, 1.5kV Isolation Logic 1 : Open ; Logic 0 : close to GND Digital output: |
Control
| Button | 1 x Power Button with LED Indicator 1 x Reset Button 1 x Clear CMOS Button |
Power
| Power Rating | 9V to 36V DC (4 Pin Terminal Block/DC Jack) |
| Adapter | 12V 220W |
