Intel® Celeron® N6211 DIN Rail Box PC
Vlastnosti:
- DIN Rail design for Industrial Automation application
- Onboard Intel® Celeron® N6211 Processor (1.5M Cache, up to 3.0GHz)
- 1 x SO-DIMM DDR4 Memory, up to 16GB
- 1 x RS232/ 422/ 485 communication, select thru BIOS
- 4 x Giga LAN, 3 x USB 3.2 Gen1x1, 1 x USB 2.0, 1 x VGA
- 1 x Line out, 1 x line in, 1x Mic in, 1 x Power Jack
- Fanless, streamlined enclosure for highly efficient heat Dissipation
- AWS IoT Greengrass certified
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Expansion Port | 1 x M.2 2230 E-key (for half size Wifi module) 1 x M.2 2242 B-key Slot (for SSD) |
| Processor | Intel® Celeron® N6211 (1.5M Cache, up to 3.0GHz) Intel® Celeron® N6210 (1.5M Cache, up to 2.6GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB (Optional) 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 4 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 139 x 65.4 x 152 mm |
| Mounting | Din-Rail Mounting |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Shock | 15G, 11ms duration |
| Vibration | 5Hz~500Hz / 1Grms / 3 axis |
Certification
| Certification | CE, FCC, IC AWS loT Greengrass Certified |

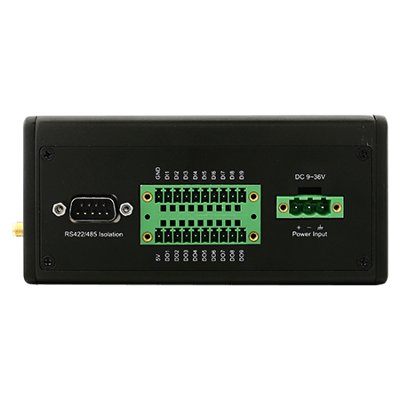

IO Ports
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| USB Port | 3 x USB3.2 Gen2x1 (Type-A) 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS422/485 (Default RS422) |
| Video | 1 x VGA |
| Audio | Mic in Line in Line out |
| Expansion Port | 1 x M.2 2230 E-key (for half size Wifi module) |
| LAN | 4 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| DIDO | Terminal block with digital 9 in / 9 out (Optional) |
Control
| Button | 1 x Power Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord 2 x Terminal Block 10 pin fconnector for DIDO Open Wire Cable with terminal block connector Terminal Block 3 pin to 2.5Ø Female Adapter Cable Din Rail Mounting kits |
Power
| Power Rating | 9V to 36V DC with isolation, 3-Pin Terminal Block |
| Adapter | 12V 84W |
