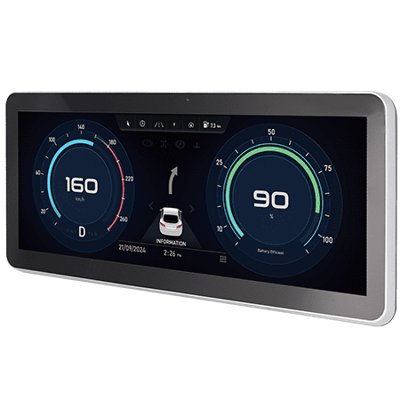

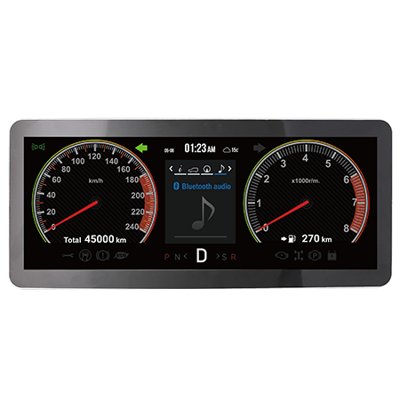

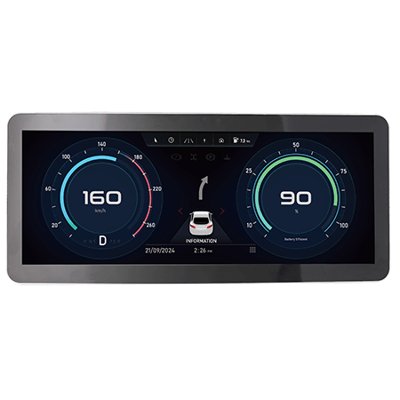

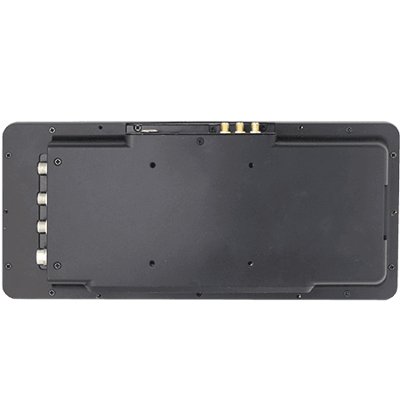

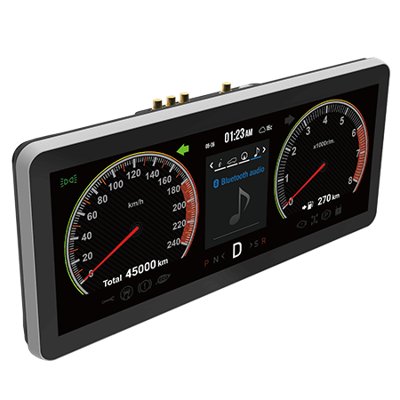

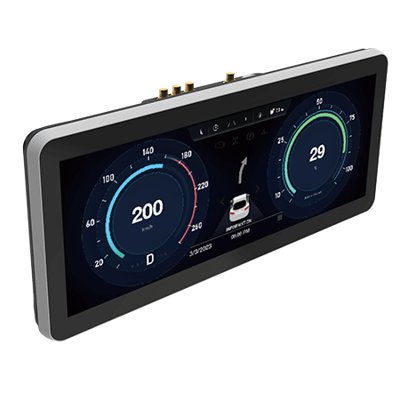

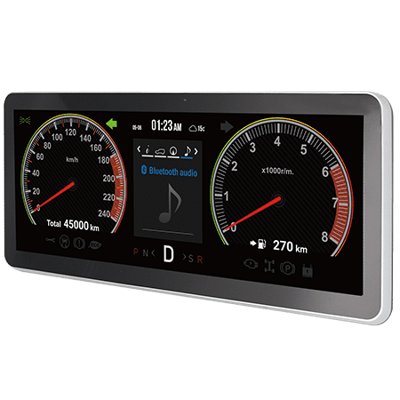

12.3" Intel® Celeron® N6211 G-WIN GS-Series Full IP65 PCAP Panel PC
Vlastnosti:
- 12.3” 1920 x 720 panel with projected capacitive multitouch screen
- Intel® Celeron® N6211 Elkhart Lake
- M12 waterproof connectors , IP65 waterproof and dustproof
- Shock and vibration resistance according to MIL-STD-810H
- Support Windows 10 IoT Enterprise or Linux
- Wide power input 10-60V DC with ignition
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920×720 |
| Size | 12.3 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 88,88,88,88 |
| Active Area | 292.92×110.22 mm |
System Specification
| Processor | Intel Celeron N6211 1.2GHz (up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS, GLONASS (Optional) |
Mechanical
| Dimension | 325.02 x 146.5 x 45 mm |
| Mounting | VESA Mount |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 1 x USB 2.0 (M12 type) 1 x Micro USB (Host) |
| Serial Port | 1 x RS232/422/485 (Default RS232) (Optional) |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 1 x SIM card slot (Optional) |
| LAN | 1 x LAN 10/100/1000 Mbps (M12 type) |
| DIDO | 6 x Digital Input (M12 type) (Optional) |
| CANBUS | 2 x CANBus (M12 type) (Optional) |
Environment
| Operating Humidity | 5% to 95% RH |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Power Button |
Power
| Power Rating | 10V~60V with ignition control |
| Adapter | 12V 50W |
Accessory
| Accessory | Quick Start Guide M16 Power Cable M12 COM Port/CANBus Cable M12 Digital Input/CANBus Cable M12 USB/ LAN Cable |
| Optional Accessory | WWAN Antenna x 2 (Optional) GPS Antenna, 3m (Optional) |
