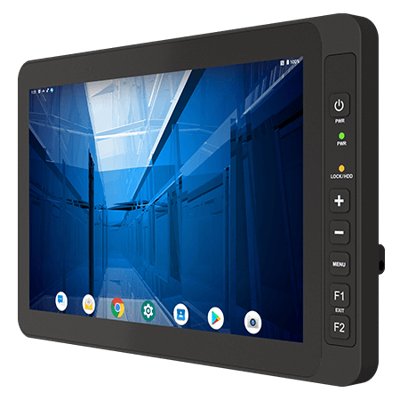

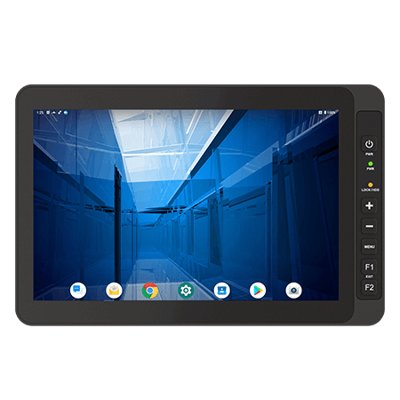

10.1 ARM A53 G-WIN Full IP67 P-CAP Panel PC with ARM A78 + A55 Processor
Vlastnosti:
- ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz
- High Quality 10.1” Panel, 1280×800 resolution, 350 nits (Optional for 1000 nits)
- P-cap multi touch screen Optical Bonding with Panel to increase the clarity and transparency
- Optional Anti-Reflective Protection Glass Optical Bonding with Panel
- Dust/ Water proof design with VESA mount Full IP67 Panel PC
- Plastic Front Bezel with Anti-Corrosion Aluminum Die-Casting back cover
- Build in ambient Light sensor
- -10 to 55°C wide operating temperature
- Wide Range 9 to 36V DC Input. Optional for Ignition On/Off delay
System Specification
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 85,85,85,85 |
| Type | Projected Capacitive Multi Touch Screen Bonding With Panel Ture Flat Protection Glass Bonding With Panel (Optional) |
Mechanical
| Dimension | 263.9 x 172.6 x 40.4 mm |
| Weight | 1.5 kg |
| Mounting | VESA mount |
| Enclosure | Plastic Front Bezel with Aluminum back cover Pre finish: Surtec 650, Type II, Class 3 Coating: Polyester powder coating |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
Certification
| Certification | CE, FCC |

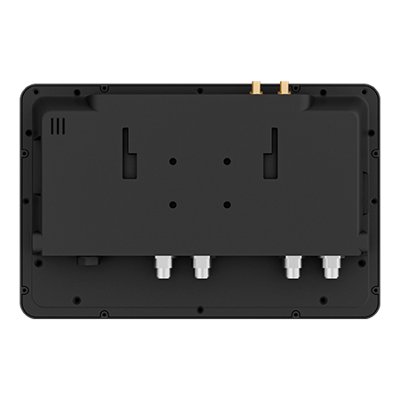

IO Ports
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x “Power” key to power on the device. 1 x “+” key to increase screen brightness. 1 x “-” key to decrease screen brightness. 1 x “Menu” key to bring up the Winset Utility. 2 x programmable function keys that can be configured by Win-Set Utility |
Accessory
| Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps RJ45 female-female converter USB Type A converter VESA screws |
| Optional Accessory | 100~240V AC to DC 120W Adapter with power cord (Optional) |
