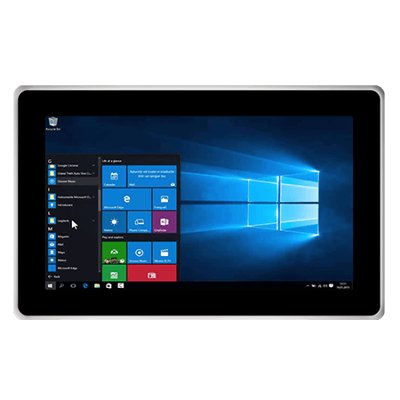

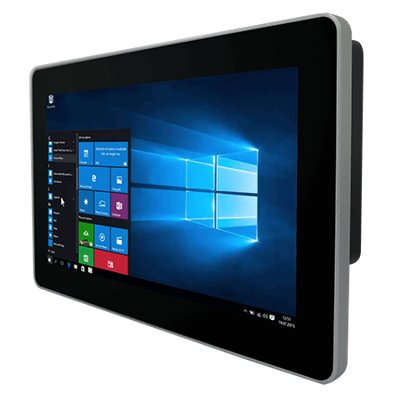

10.1" Intel® Celeron® N2930 G-WIN GS-Series Full IP65 PCAP Panel PC
Vlastnosti:
- 10.1“ 1280 x 800 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- Intel® Celeron® Bay Trail-M N2930 1.83 GHz
- Fanless cooling system and ultra-low power consumption
- Edge-to-edge design
- Full IP65 design with Special M12 Waterproof connectors
- 1 x LAN，1 x RS232，1 x USB 2.0
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350 nits 1000 nits(Optional) |
| View Angles | 85,85,85,85 |
| Active Area | 216.96 x135.6 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) |
System Specification
| Processor | Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 64GB. mSATA SSD up to 512GB. (Optional) |
| Ethernet controller | 2 x Intel® Gibabit Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (Optional) Linux Ubuntu 18.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15 °C to 55 °C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | Full IP65 |
Certification
| Certification | Compliant with MIL-STD-810F/G for vibration / shock, CE, FCC |
IO Ports
| USB Port | 1 x USB 2.0 (M12 type) |
| Serial Port | 1 x RS232 (M12 type)(Optional 422/485) |
| LAN | 1 x LAN-10/100/1000 (M12 type) |
| Indicator | LED Indicators: Power, Storage |
Power
| Power Rating | 9-36V DC (M12 type) |
Accessory
| Accessory | Quick Start Guide (Hardcopy) Driver CD & User Manual M12 Power Cable M12 Serial Interface Cable M12 USB/ LAN Cable I/O Protective Cap x 3 |
Control
| Button | 1 x Power Button 1 x Reset Button |
