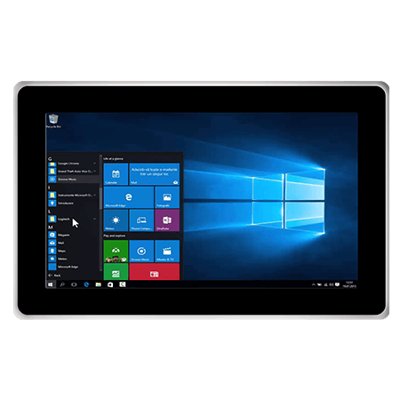

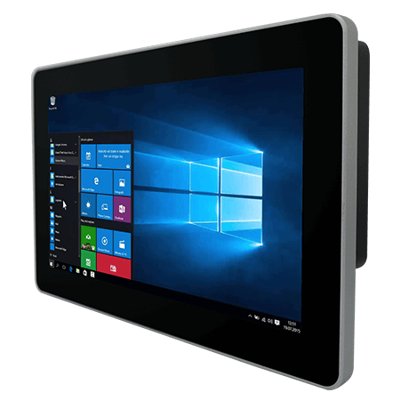

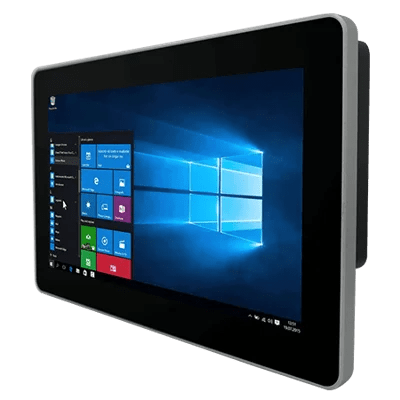

10.1″ IntelR CeleronR N2930 G-WIN GC-Series Front IP65 PCAP Panel PC
Vlastnosti:
- 10.1” 1280 x 800 PCAP touchscreen
- Low power consumption with Intel® Celeron® N2930
- Fanless cooling system and ultra low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350.0 nits |
| View Angles | 85,85,85,85 |
| Active Area | 216.96×135.6 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB2.0 1 x USB3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| Video | 1 x HDMI (Optional) |
| Audio | 1 x Speaker |
| LAN | 2 x RJ45 |
Mechanical
| Dimension | 264.57 x 173.29 x 35.7 mm |

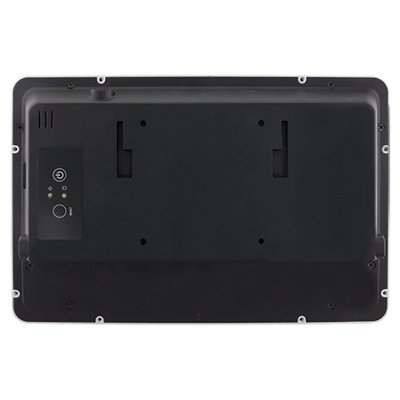

| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Plastic Bezel & Aluminum back cover |
| Cooling System | Fanless Design |
Accessory
| Accessory | Quick Start Guide(Hardcopy) AC Adapter Power Cable |
Control
| Button | 1 x Power Button 1 x Reset Button |
Power
| Power Rating | 12V DC in |
