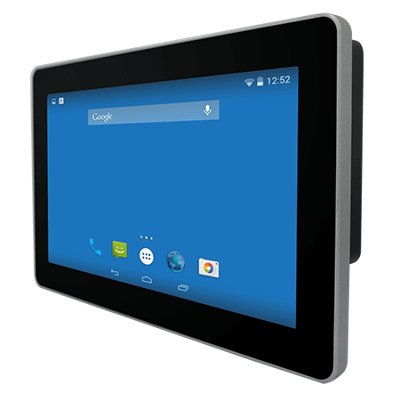

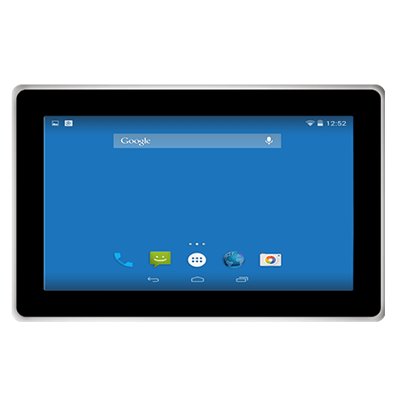

10.1" NXP i.MX6 G-WIN GS-Series Full IP65 PCAP Panel PC
Vlastnosti:
- 10.1 ” 1280 x 800 PCAP touchscreen
- NXP i.MX6 Dual Core 1GHz
- Fanless cooling system
- Ultra-low power consumption
- Full IP65
System Specification
| Processor | NXP i.MX6 Dual Core, 1.0GHz |
| Memory | 1GB 2GB (Optional) |
| Storage | Onboard 16GB eMMC Onboard 32GB eMMC (Optional) |
| Operating System | Linux Ubuntu 18.04 (Optional) Android 6.0 (Optional) Debian 7.0 (Optional) Linux 4.1.15 QT 5.5 (Optional) |
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350 nits 1000 nits(Optional) |
| View Angles | 85,85,85,85 |
| Active Area | 216.96 x135.6 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15 °C to 55 °C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | Full IP65 |
Certification
| Certification | Compliant with MIL-STD-810F/G for vibration / shock, CE, FCC |
IO Ports
| USB Port | 1 X USB 2.0 (M12 type) |
| Serial Port | 1 x RS232 (M12 type)(Optional 422/485) |
| SD Card Slot | 1 x Micro SD Card Slot |
| Audio | 1 x Speaker |
| LAN | 1 x LAN-10/100/1000 (M12 type) |
Mechanical
| Dimension | 263.28 x 172 x 40.2 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
Power
| Power Rating | 12V DC (M12 type) |
Accessory
| Accessory | Quick Start Guide (Hardcopy) Driver CD & User Manual M12 Power Cable M12 Serial Interface Cable M12 USB/ LAN Cable I/O Protective Cap x 3 |
