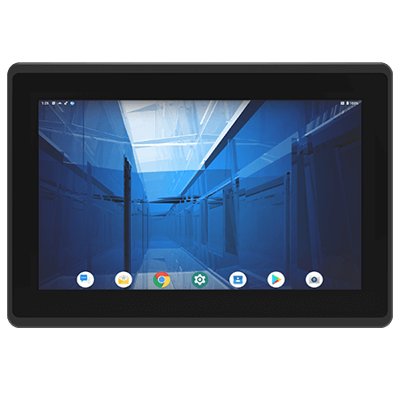

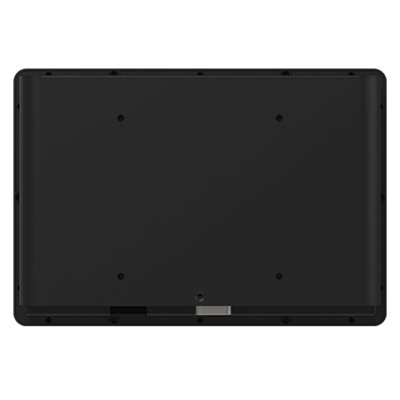

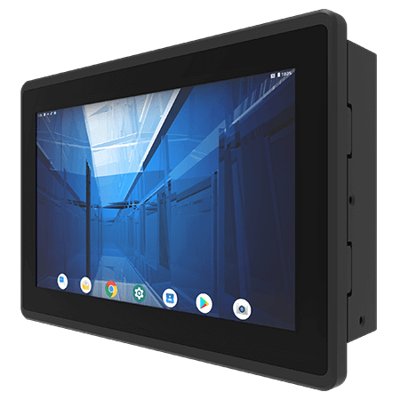

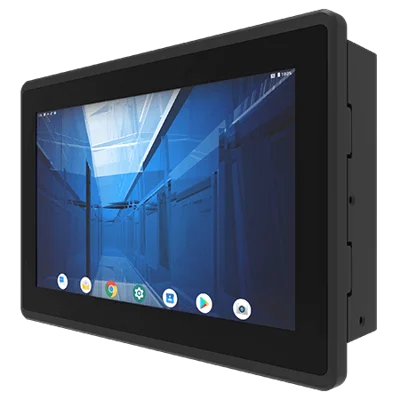

7″ ARM A78+A55 E Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 Resolution with Projected Capacitive Multi-Touch (PCAP)
- ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 13
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 320.0 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz |
| Memory | 4GB LPDDR4 |
| Storage | Onboard 32 GB |
| Operating System | Android 13 Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 185 x 128 x 56 mm |
| Weight | 0.9 kg |
| Mounting | Panel mount VESA mount (Optional) |
| Enclosure | Plastic Housing |
| Cooling System | Fanless Design |
| Cut out | 175x118mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB 2.0 Type A 1 x USB 2.0 Type C (OTG) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card slot |
| Video | 1 x Micro HDMI Output (Optional) |
| LAN | 1 x LAN 10/100/1000 Mbps PoE(PD, 802.3at) (Optional) |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
