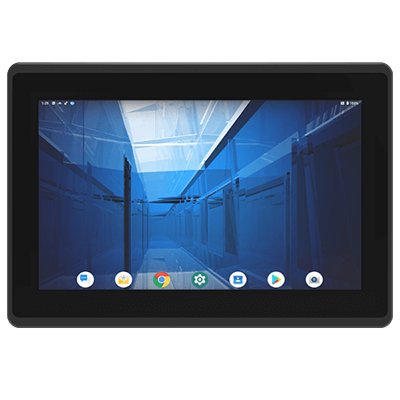

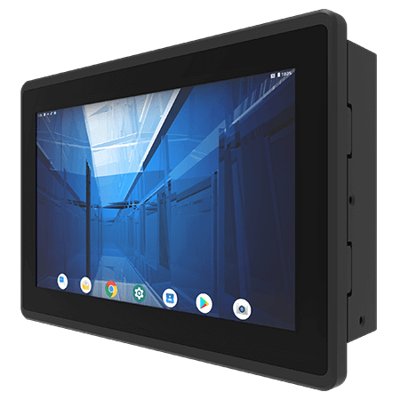

7" Qualcomm Snapdragon™ 660 E Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
Display
| Resolution | 1024×600 |
| Size | 7 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 320 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB LPDDR4 |
| Storage | 32GB eMMC |
| Operating System | Android 9.0 |
Mechanical
| Dimension | 185 x 128 x 56 mm |
| Mounting | Panel mount VESA Mount |
| Enclosure | Plastic Front Bezel with Metal Back Cover |
| Cooling System | Fanless design |
| Cut out | 175x118mm |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card slot |
| Video | 1 x Micro HDMI (Optional) |
| LAN | 1 x LAN |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Manual Mounting clips |
Power
| Power Rating | 12V DC with Terminal Block |
| Adapter | 12V 50W |
