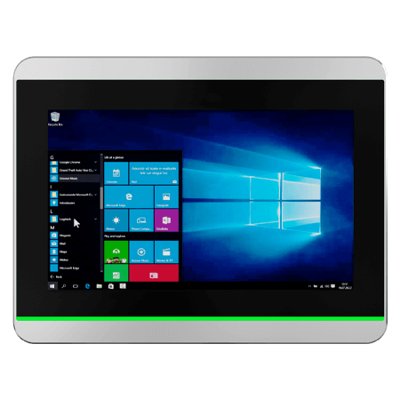

7" Intel® Celeron® N6211 S Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 1000nits Panel with PCAP multi-touch screen
- Intel® Celeron® Elkhart Lake N6211 Processor
- Fanless cooling system and ultra-low power consumption
- Dual 2.5 Gigabit Ethernet
- RGB LED Light Bar
- Front IP65 water and dust proof
- Optional 2 MP Front Camera
- Optional HF RFID Reader
- Support PoE function
- Stylish design for room booking, access control and room information applications
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
| Light Bar | Built-in RGB LED Status Light Bar, on both sides |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-Key SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 189.4 x 145.4 x 39.8 mm |
| Weight | 1.0 kg |

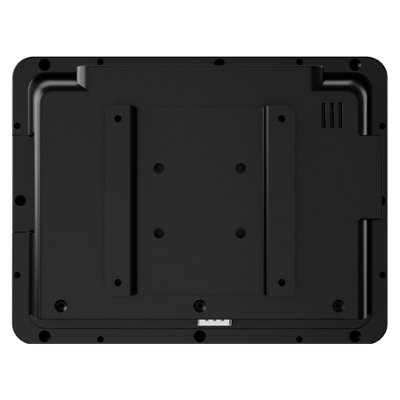

| Mounting | Wall mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Cut out | 175.5×131.5mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 3-Pin Terminal Block |
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 1 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| LAN | 2 x Giga LAN RJ45 Connector, One with PoE(PD, 802.3at, 25W)(Optional) |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector VESA screws |
| Optional Accessory | VESA Wall Mount (Optional) VESA Desk Stand (Optional) Glass Wall Mount Kit (Optional) Front Side Wall Mount (Optional) VESA bracket mounting kit (Optional) |
Power
| Power Rating | 12V DC 10~60V (Optional) |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
