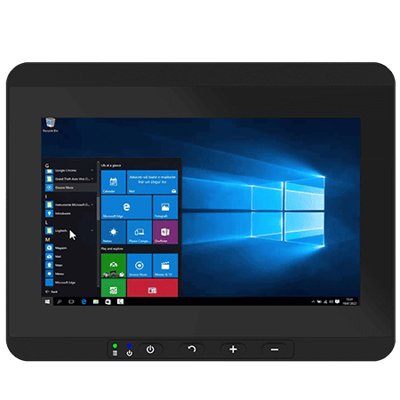

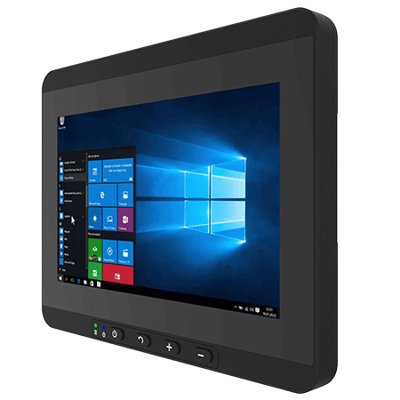

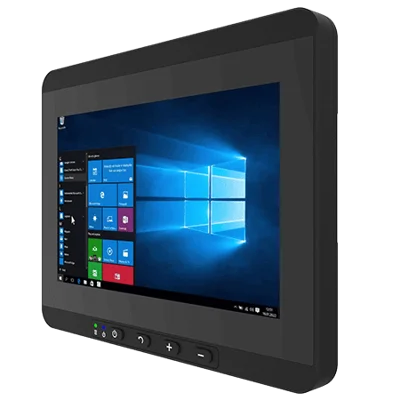

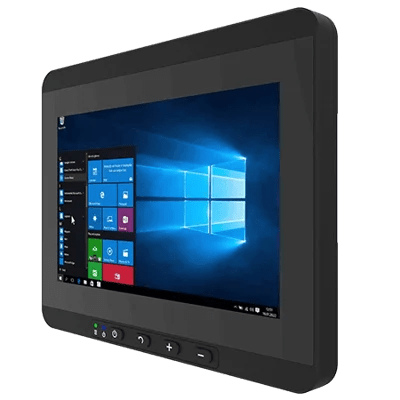

7 IntelR CeleronR N6211 G-WIN Full IP67 P-CAP Panel PC
Vlastnosti:
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 2.60 GHz
- High Quality 7” Panel, 1024 x 600 resolution, 1000 nits
- P-cap multi touch screen Optical Bonding with Panel to increase the clarity and transparency
- Optional Anti-Reflective Protection Glass Optical Bonding with Panel
- Dust/ Water proof design with VESA mount Full IP67 Panel PC
- Plastic Front Bezel with Anti-Corrosion Aluminum Die-Casting back cover
- -10 to 55°C wide operating temperature
- Wide Range 9 to 36V DC Input. Optional for Ignition On/Off delay
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Celeron N6211 1.2GHz (up to 2.6GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-Key SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 1 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel Ture Flat Protection Glass Bonding With Panel (Optional) |
Mechanical
| Dimension | 189.4 x 145.4 x 49.8 mm |
| Weight | 1.2 kg |
| Mounting | VESA mount |
| Enclosure | Plastic Front Bezel with Aluminum back cover Pre finish: Surtec 650, Type II, Class 3 Coating: Polyester powder coating |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP67 |
Certification
| Certification | CE, FCC |

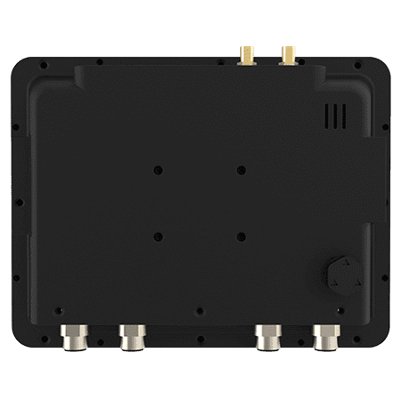

IO Ports
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button F1 key to increase screen brightness. F2 key to decrease screen brightness. F3 key to bring up the Winset Utility. |
Accessory
| Accessory | External open wire Power cable with waterproof connector External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps RJ45 female-female converter VESA screws |
| Optional Accessory | 100~240V AC to DC 84W Adapter with power cord (Optional) |
Ordering Information
| Option | W07IE3A-67O1-G for Anti Reflective Protection Glass (Optional) |
