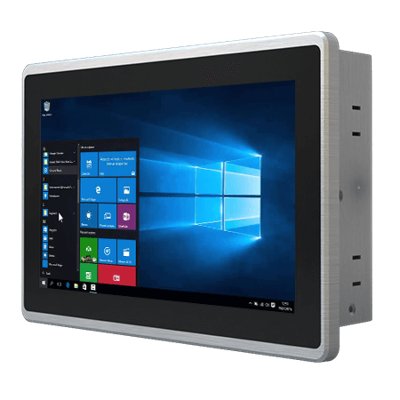

7" Intel® Celeron® N2930 PP Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 Resolution
- PCAP multi-touch screen
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Display
| Resolution | 1024×600 |
| Size | 7 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 320 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB. mSATA SSD up to 512GB. (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Mechanical
| Dimension | 184.94 x 127.7 x 48.2 mm |
| Mounting | Panel mount VESA Mount |
| Enclosure | Plastic Front Bezel with Metal Back Cover |
| Cooling System | Fanless design |
| Cut out | 175 x 117mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A) 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Video | 1 x HDMI 1.4 (Optional) |
| Expansion Port | 1 x mPCIe slot(for half size Wifi module) |
| LAN | 2 x Giga LAN RJ45 Connector |
| mini PCIe | 1 x Mini PCIE(For WLAN) |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
| Power Rating | 12V DC |
| Adapter | 12V 50W |
