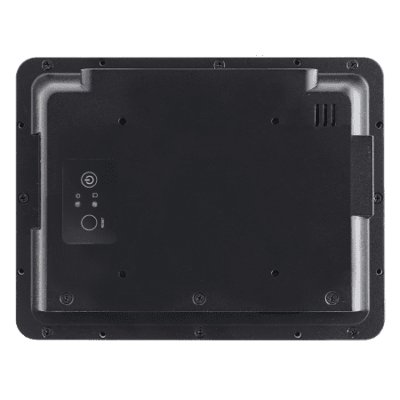

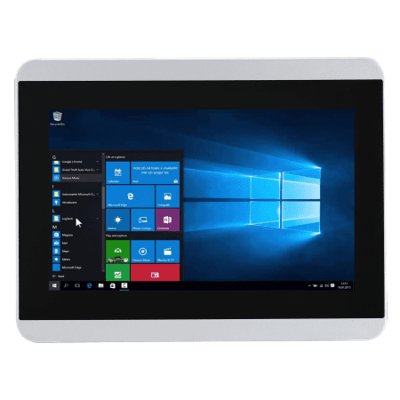

7" Intel® Celeron® N2930 S Series HMI Panel PC
Vlastnosti:
- 7” 1024 x 600 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Fanless cooling system and ultra-low power consumption
- Dual Gigabit Ethernet
- Front IP65 and full IP22 ratings
- Optional 2MP Front Camera
- Optional HF RFID Reader
- Support PoE function
Display
| Resolution | 1024×600 |
| Size | 7 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 320 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB. M.2 2242 B-key SSD up to 512GB. (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| RFID | HF RFID Reader 13.56 MHz (Optional) |
Mechanical
| Dimension | 189.4 x 145.4 x 36.1 mm |
| Mounting | Panel mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Cut out | 175.5×131.5mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB 3.0 1 x USB 2.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| Audio | 1 x Speaker |
| LAN | 1 x RJ45-10/100/1000 Mbps (LAN) 1 x RJ45 (PoE) |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector VESA screws |
| Optional Accessory | VESA Wall Mount (Optional) VESA Desk Stand (Optional) Glass Wall Mount Kit (Optional) Front Side Wall Mount (Optional) VESA bracket mounting kit (Optional) |
Power
| Power Rating | 12V DC 10~60V (Optional) |
| Adapter | 12V 50W |
| POE | PoE (PD): follows IEEE 802.3at (25 W) |
