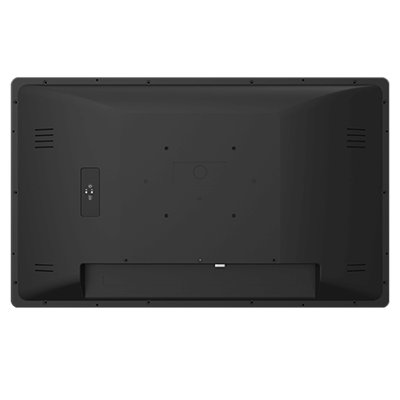

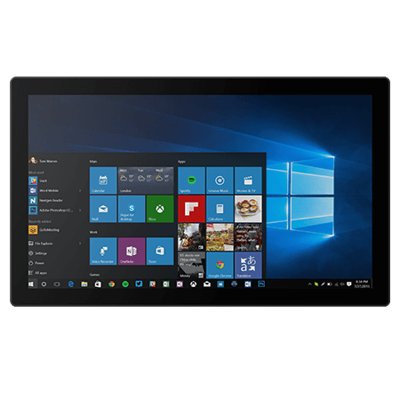

23.8" Intel® Core™ i5-1135G7 PT Series HMI Touch Panel PC
Vlastnosti:
- Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2GHz) Processor
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Display
| Resolution | 1920×1080 |
| Size | 23.8 inches |
| Contrast Ratio | 3000:1 |
| Panel Brightness | 250.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 527.04×296.46 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 588 x 358 x 60 mm |
| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 2 x USB 3.2 |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| LAN | 2 x RJ45 |
Power
| Power Rating | 12V DC in |
Control
| Button | 1 x Power Button 1 x Reset Button |
