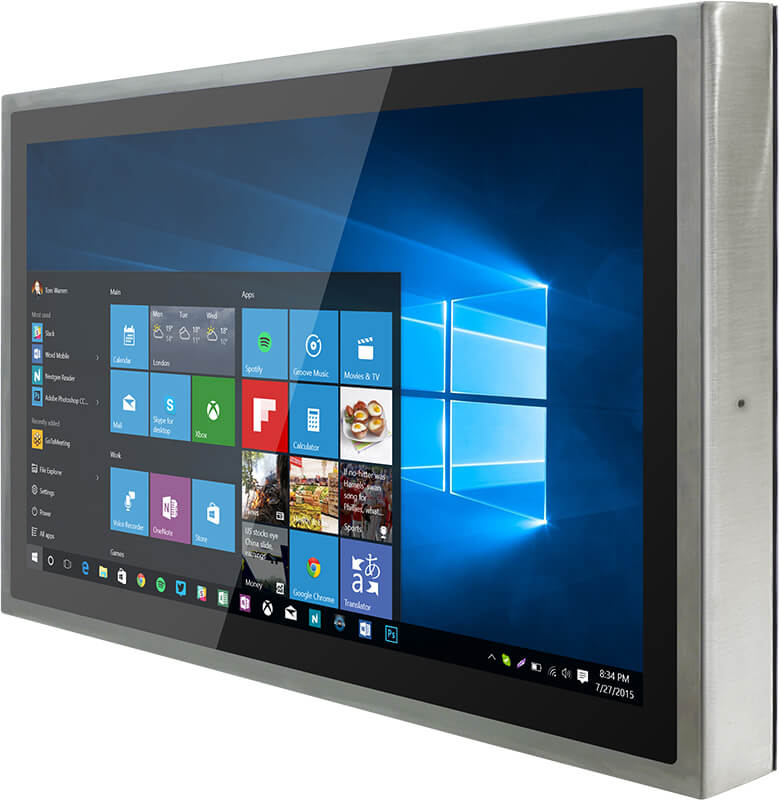

W24IK3S-SPA269 – 23.8-inch IP69K Flat Stainless P-CAP Panel PC
Features
23.8″, 1920 x 1080, P-cap touch with flat design Intel® Core i5-7200U 2.5GHz (turbo to 3.1GHz) SUS 316/ AISI 316 stainless steel for food and chemical industries Full IP69K waterproof enclosure, good corrosion resistance A true flat, easy-to-clean front surface with edge-to-edge design Plenty of I/Os, including USB 2.0, RS232 and RJ45-10/100/1000 LAN Waterproof ports with adapter cables for external connectivity Supports VESA mount Supports Glove/ Rain mode (Optional) LCD Panel Specification
| Size | 23.8″ |
| Contrast Ratio | 3000 : 1 (typ.) |
| Panel Brightness | 250 cd/m2 (typ.) |
| Viewing Angle | -89~89(H);-89~89(V) |
| Recommend Resolution | 1920 x 1080 |
| Touch Screen | P-Cap (Default) |
| Maximum Colors | 16.7M |
System Specification
| Processor | Intel® Core i5-7200U 2.5GHz (turbo to 3.1GHz) |
| Chipset | Intel® HD Graphics 620 |
| Memory | 4GB DDR4-2133 SO-DIMM (Max 16GB) |
| BIOS | Insyde BIOS |
| Audio | Realtek ALC283 HD Audio Codec |
| Serial | 1 x RS232 |
| USB | 2 x USB2.0 |
| Storage | 64GB M.2 B Key SATA III SSD (Options up to 512GB) |
I/O Connectors
| USB Port | 2 x USB 2.0 |
| Ethernet | 1 x RJ45 – 10/100/1000 Mbps |
| COM Port | 1 x RS232 |
Mechanical and Environment
| Power Input | DC IN |
| Operating Temperature | 0 deg.C to 45 deg.C |
| Operating Humidity | 30% to 90% (non-condensing) |
| IP Proof | IP69K, air venting valve |
Peripheral
| Accessories | External Power Supply 80W w/power cord
LAN Cable
Serial Cable
USB Cable
VESA screws |
Power
| Power Input | 12V DC in(Lockable power jack) |
| Power Consumption | 56W (typ.)(Max.backlight & high CPU load) |
Order Options
| RAM | SODIMM DDR4 2GB/4GB/8GB/16GB |
| Storage | 64GB M.2 B Key SATA III SSD (Options up to 256GB) |
| OS | Windows 10 IoT Enterprise |
