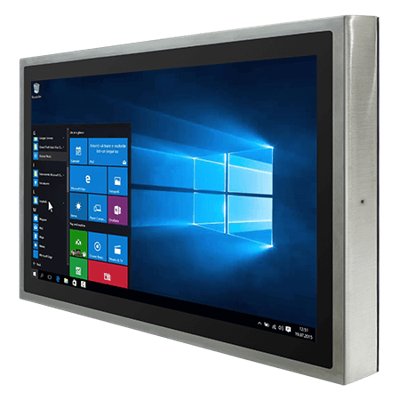

23.8" Intel® Celeron® N2930 IP65 Stainless PCAP Chassis Panel PC
Vlastnosti:
- Intel® Celeron® Bay Trail-M N2930 1.83GHz Processor
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Sealed to IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Flat multi-touch panel pc with superior readability and P-Cap technology
- Various mounting solutions, Yoke mount and VESA mount
- Plenty of I/O s including USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports
- Waterproof ports with adapter cables for external connectivity
- Support Glove / Rain mode
- Optical bonding (optional)
Display
| Resolution | 1920×1080 |
| Size | 23.8 inches |
| Contrast Ratio | 3000:1 |
| Panel Brightness | 250 nits |
| View Angles | 89,89,89,89 |
| Active Area | 527.04×296.46 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x mSATA SSD 128GB. mSATA SSD up to 512GB. (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Mechanical
| Dimension | 620 x 390 x 56 mm |
| Mounting | VESA Mount Yoke Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1x M12 Waterproof Connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x Waterproof Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps Manual VESA screws |
Power
| Power Rating | 12V DC (M12 type) |
