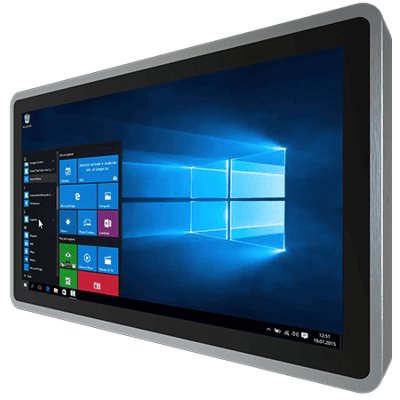

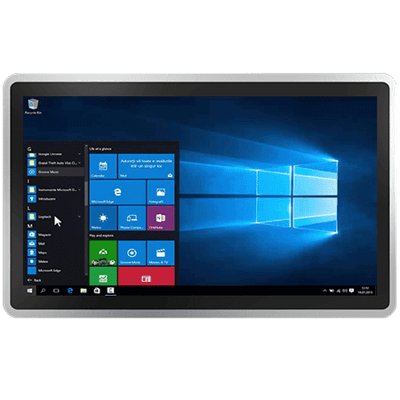

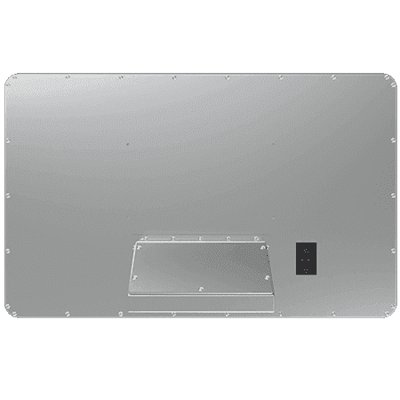

21.5" Intel® Core™ i5-1135G7 IP65 Stainless R Series Panel PC
Vlastnosti:
- 11th Generation Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
- Round corner design
- A true flat, easy-to-clean front surface with an edge-to-edge design
- Sealed to IP65 for protection against water and dust
- Support Glove / Rain mode
- SUS 316 / AISI 316 stainless steel for food and chemical industries
- Various mounting solutions
- Optical bonding (optional)
Display
| Resolution | 1920×1080 |
| Size | 21.5 inches |
| Contrast Ratio | 3000:1 |
| Panel Brightness | 250.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 476.64×268.11 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) 1 x SATA III , up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 541 x 337 x 56.2 mm (without junction box) 541 x 337 x 153.2 mm (with junction box) |

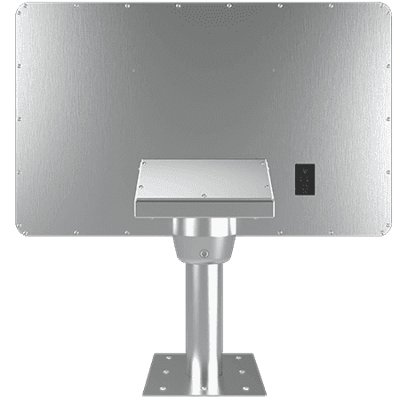

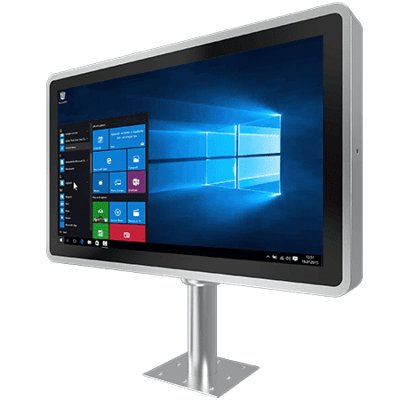

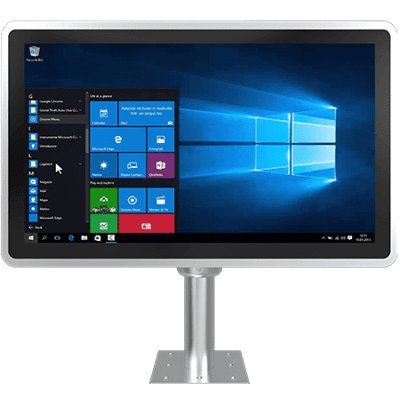

| Mounting | VESA Mount Yoke Mount Arm Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x M12 waterproof connector for 12V DC |
| USB Port | 1x M12 waterproof connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x waterproof Giga LAN RJ45 connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Junction Box Waterproof caps Manual VESA screws |
Power
| Power Rating | 12V DC (M12 type) |
