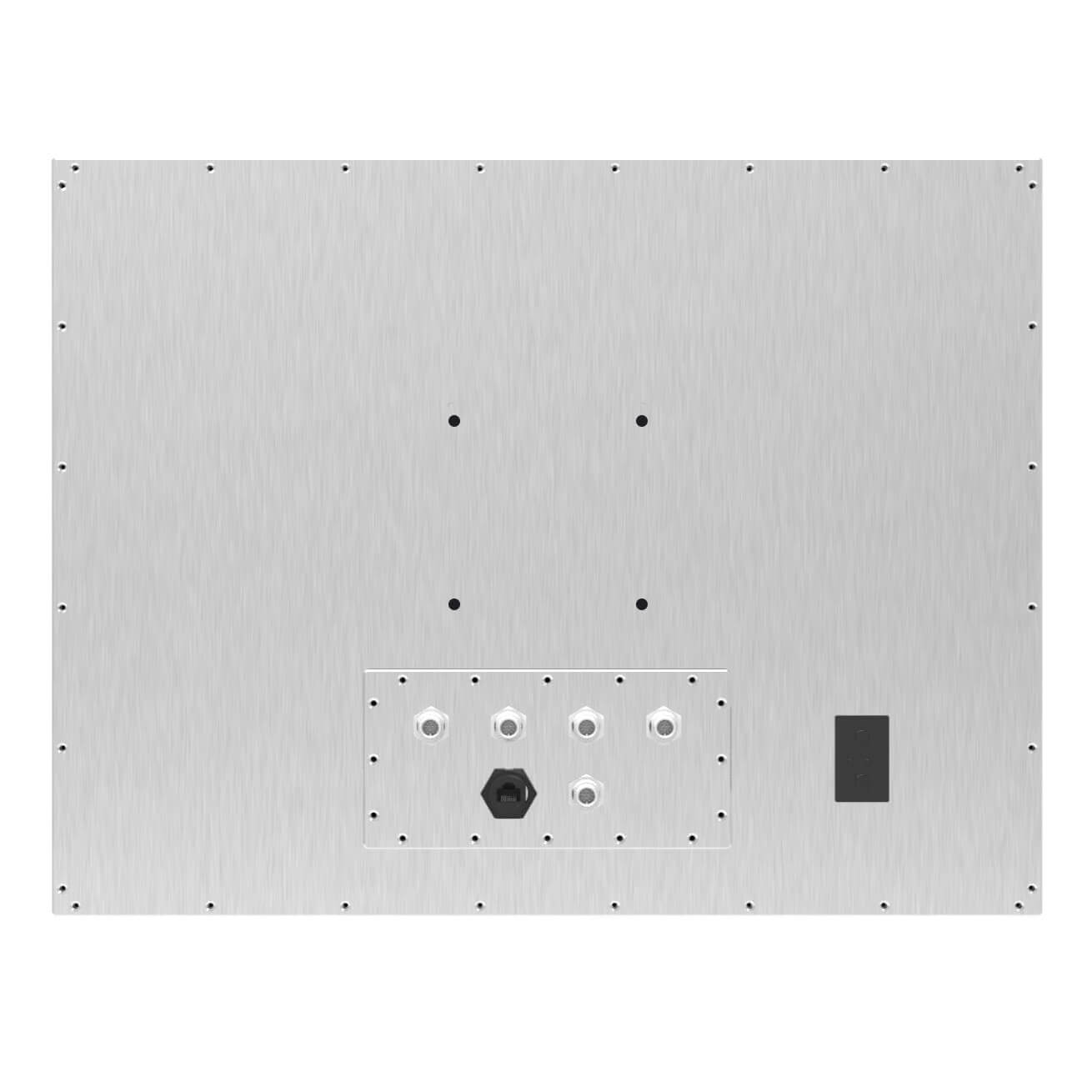

21.5 Stainless B Series Panel PC
Features
LCD PaneláSpecification
| Size | 21.5″ |
| Contrast Ratio | 3000 : 1 (typ.) |
| Panel Brightness | 250 cd/m2 (typ.) |
| Viewing Angle | -89~89(H);-89~89(V) |
| RecommendáResolution | 1920 x 1080 |
| Touch Screen | PCAP touchscreen |
| Maximum Colors | 16.7M |
SystemáSpecification
| Processor | Intel® Celeron Bay Trail-M N2930(2M Cache, up to 2.16 GHz) |
| Chipset | Intel® SoC Integrated |
| Memory | 1 x SODIMM, Max 8GB DDR3 1600 MHz, default 4GB |
| BIOS | AMI BIOS |
| Ethernet | Intel® Ethernet Controller I210-AT |
| Audio | Realtek HD codec |
| ExpansionáSlots | 1 x mPCIe slot(for half size Wifi module) |
| OS | Windows 10 IoT Enterprise |
I/O Connectors
| DC-Input | 1 x M12 waterproof connector for 12V DC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0 1 x Front waterproof connector for USB2.0 type-A |
| Ethernet | 1 x waterproof Giga LAN RJ45 connector |
| COM Port | 1 x M12 waterproof connector for RS232 |
Mechanical and Environment
| Operating Temperature | 0~45C |
| Storage Temperature | -20~60C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Mounting | VESA Mount |
| Dimension (W x H x D) | 595 x 337 x 69 mm |
| IP Proof | IP65 |
Power
| Power Input | Default 12V DC input 9~36V DC input for optional |
| Power Adapter | 100~240V AC to DC Adapter with waterproof connector |
Peripheral
| LED Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Buttons | Rear side: 1 x Power Button 1 x Reset Button Front side: 1 x Emergency Button & 3 x Flat Buttons for CN1 & CN2 M12 connector 1 x Rotary Switch for touch mode |
Standard and Certification
| Certification | CE, FCC |
