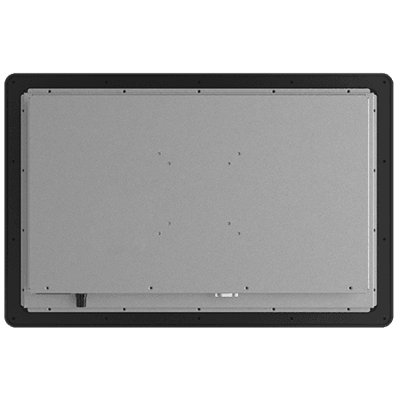

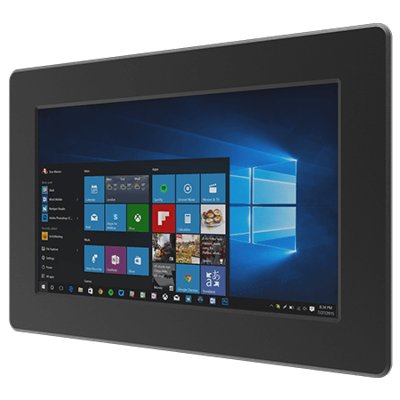

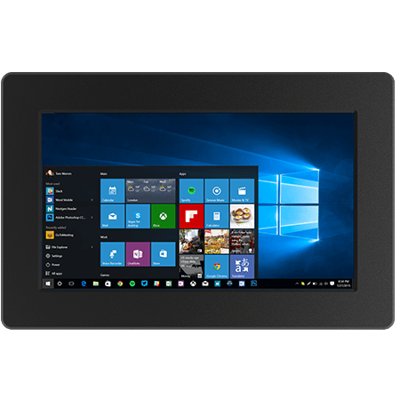

18.5" Intel® Core™ i5 (Tiger Lake) Front IP65 Panel PC
Vlastnosti:
- Intel® Core™ Tiger Lake UP3 i5-1135G7（Without vPro）/ Intel® Core™ Tiger Lake UP3 i5-1145G7E（With vPro）
- 1366 x 768 Resolution
- Multi display supports DP / HDMI / LVDS / eDP panel interface
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.2 Gen. 1 Ports
- 12V Single Voltage Power Input
- Front IP65 water and dust proof
Display
| Resolution | 1366×768 |
| Size | 18.5 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 450.0 nits |
| View Angles | 85,85,80,80 |
| Active Area | 409.8X230.4 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass Without Touch Function (Optional) |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 3200 MHz, 4GB (Optional) 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
| Storage | 1 x M.2 M-Key 2242 SATA SSD or 1 x M.2 M-Key 2280 NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB(for NVMe) (Optional) 2TB(for NVMe) (Optional) 4TB(for NVMe) (Optional) 1 x SATA III , up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 520 x 340 x 70 mm |
| Mounting | Panel mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Cut out | 462 x 285mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, Din4 pin connector |
| USB Port | 4 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| Video | 1 x DP1.4 1 x HDMI 2.0 (Optional) |
| Audio | Mic in Line out |
| Expansion Port | 1 x M.2 2242/2280 Key M slot for SATA/NVMe SSD 1 x M.2 2230 Key E slot for WiFi (Optional) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
| Power Rating | 12V DC |
| Adapter | 12V 120W |
