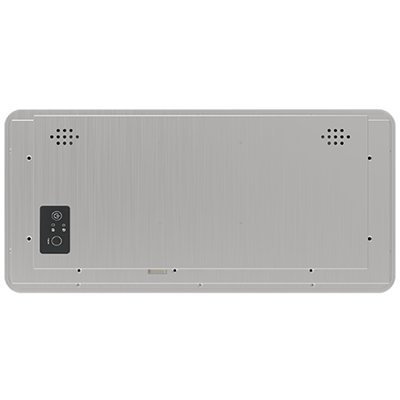

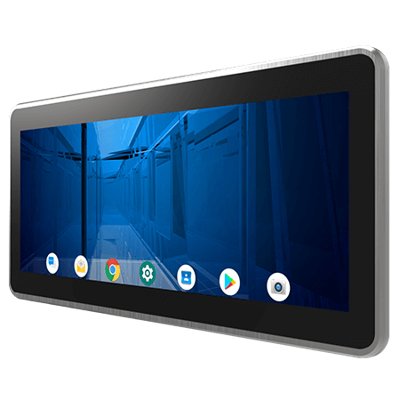

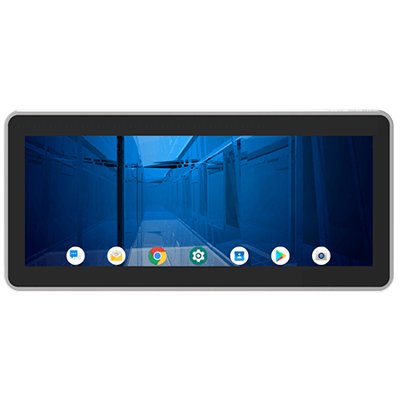

14.9" ARM A53 PP Series HMI Panel PC
Vlastnosti:
- 14.9” 1920 x 720 panel with projected capacitive multitouch screen
- ARM A53 Quad Core 2.0GHz CPU
- Front IP65 water and dust proof
- Aluminum housing and fanless design
- Room booking schedule, access control, room information display
- Support Android or Linux operating system
Display
Type | Projected Capacitive Multi Touch |
Resolution | 1920×720 |
Size | 14.9 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 950.0 nits |
View Angles | 85,85,85,85 |
Active Area | 355.68×133.38 mm |
System Specification
Processor | ARM A53 (Quad Core 2.0GHz) |
Memory | 4GB LPDDR4 |
Storage | eMMC: Onboard 32 GB |
Operating System | Android 11 (Upgradeable to Android 13) Linux Yocto 5.10.104 with QT 5.15 (Optional) Linux Ubuntu Server 22.04 (Optional) |
WLAN | Support (Optional) |
BT | Support (Optional) |
Mechanical
Dimension | 400.2 x 187.6 x 59 mm |
Mounting | Panel Mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless Design |
Cut out | 378.1×164.6mm |
IO Ports
USB Port | 2 x USB 2.0 Type A 1 x Micro USB 2.0 OTG |
Serial Port | 1 x RS232/422/485 (Default RS232) |
SD Card Slot | 1 x Micro SD card slot (Max to 32GB) |
Video | 1 x Micro HDMI Output (Optional) |
Audio | 2 x Speaker (Optional) |
LAN | 1 x LAN 10/100/1000 Mbps |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 60°C |
Shock | MIL-STD-810G Method 516.6 Procedure I |
Vibration | MIL-STD-810G Method 514.6 Procedure I |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
Control
Button | 1 x Power Button (Optional) |
Power
Power Rating | 12V DC with Terminal Block |
Adapter | 12V 50W |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Manual Mounting clips |
