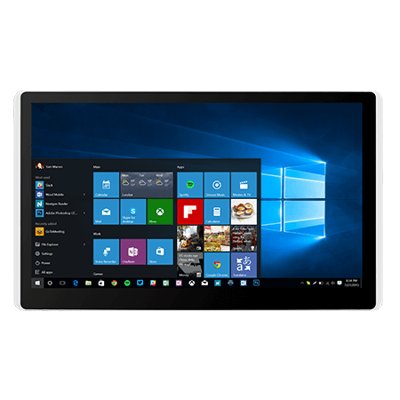

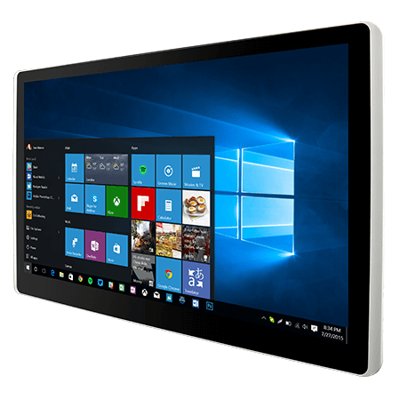

15.6" Intel® Celeron® N2930 all in one computers
Vlastnosti:
- 15.6” 1920 x 1080 with PCAP touchscreen all in one computers
- Intel ® Celeron® N2930 1.83 GHz
- Fanless cooling system and ultra low power consumption
- Front IP65 for protection against water and dust
- Plastic housing
- A true flat, easy-to-clean front surface with edge-to-edge design
- Support PoE
Display
Touch / Glass | Projected Capacitive Multi Touch Screen |
Resolution | 1920×1080 |
Size | 15.6 inches |
Contrast Ratio | 800:1 |
Panel Brightness | 400 nits |
View Angles | 85,85,85,85 |
Active Area | 344.16×193.59 mm |
System Specification
Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB. M.2 2242 B-key SSD up to 512GB. (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
Mechanical
Dimension | 388 x 233 x 40 mm |
Mounting | VESA Mount |
Enclosure | Plastic |
Cooling System | Fanless Design |
IO Ports
USB Port | 1 x USB 3.0 1 x USB 2.0 |
Serial Port | 1 x RS232(Default)/422/485 |
Audio | 2 x Speaker |
LAN | 1 x RJ45-10/100/1000 Mbps 1 x RJ45-10/100/1000 Mbps with PoE |
Indicator | Power LED Indicator |
Accessory
Accessory | Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord |
Power
Power Rating | 12V DC in |
POE | Power Device (PD), follows IEEE 802.3at (25 W) |
Control
Button | 1 x Power Button 1 x Reset Button |
