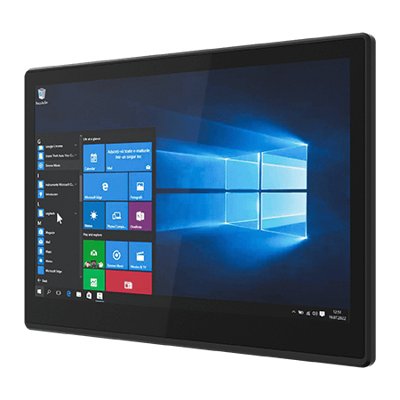

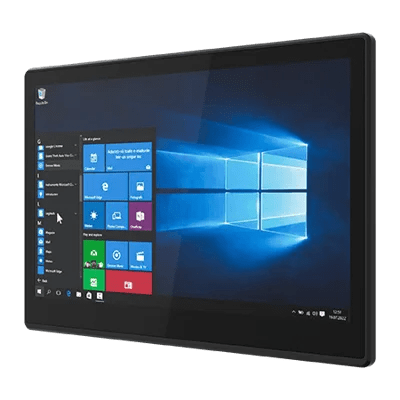

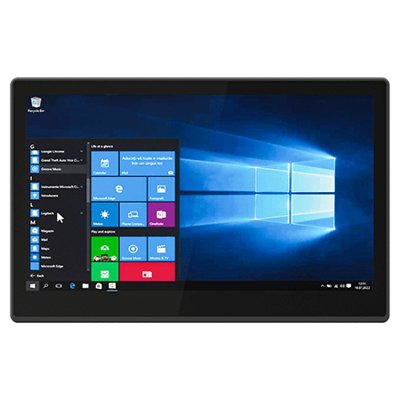

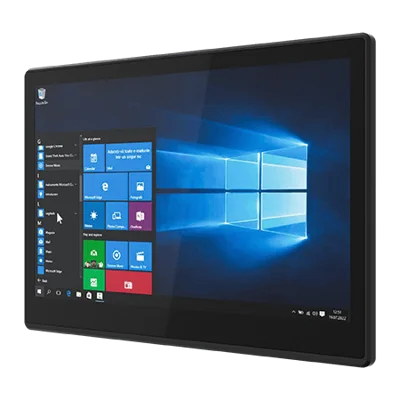

14″ Intel® Celeron® N2930 E Series HMI Panel PC
Vlastnosti:
- 14” 1920 x 1080 Resolution with Projected Capacitive MultiTouch (PCAP)
- Intel® Celeron® N2930 Processor
- Dual Gigabit Ethernet
- Fanless cooling system and ultra low power consumption
- Front IP65 Water and Dust Proof
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920×1080 |
| Size | 14.0 inches |
| Contrast Ratio | 1200:1 |
| Panel Brightness | 700.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 309.312×173.988 mm |
System Specification
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| Memory | 1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Mechanical
| Dimension | 340 x 220 x 62 mm |
| Weight | 2 kg |

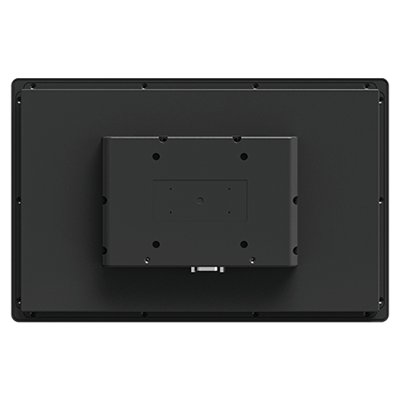

| Mounting | Panel mount VESA mount (Optional) |
| Enclosure | Metal Housing & ABS+PC |
| Cooling System | Fanless Design |
| Cut out | 318.6 x 198.6 mm |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 1 x USB3.2 Gen1x1 (Type-A) 1 x USB2.0 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA II SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| LAN | 2 x Giga LAN RJ45 Connector, One with PoE(PD, 802.3at)(Optional) |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
| Power Rating | 12V DC 9~36V (Optional) |
| Adapter | 12V 50W |
