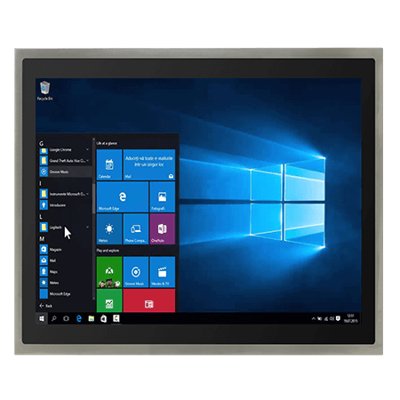

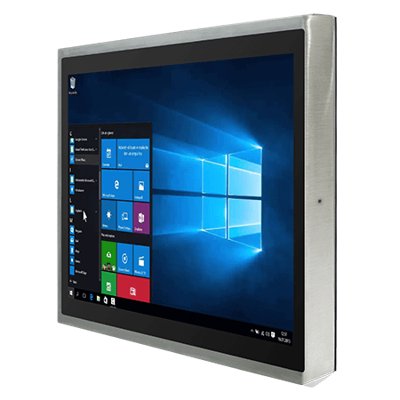

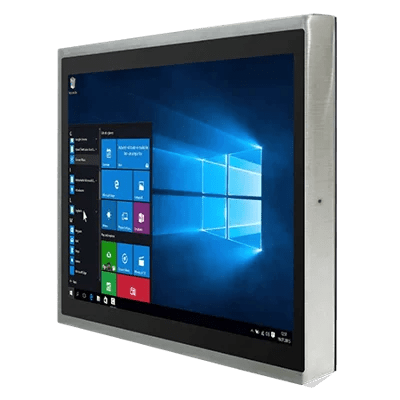

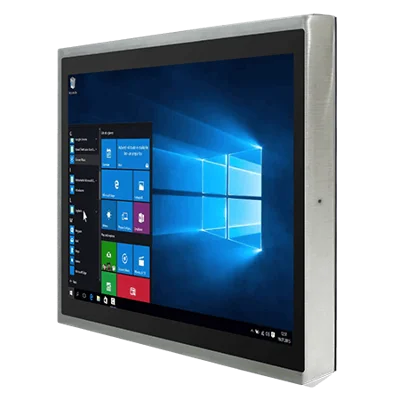

19″ IntelR Core i5-8265U IP69K Stainless PCAP Chassis Panel PC
Vlastnosti:
- 19″, 1280 x 1024 P-cap touch with flat design
- 8th Generation (Whiskey Lake) Intel® Core™ i5-8265U 1.6GHz (turbo to 3.9GHz)
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plenty of I/Os, including USB 2.0, RS232 and RJ45-10/100/1000 LAN
- Waterproof ports with adapter cables for external connectivity
- Support VESA/ YOKE mount
- Support Glove/ Rain mode
- Optical bonding (optional)
Display
| Resolution | 1280×1024 |
| Size | 19 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 250 nits |
| View Angles | 85,85,80,80 |
| Active Area | 376.32×301.06 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel Core i5 -8265U 1.6GHz (up to 3.9GHz) |
| Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Mechanical
| Dimension | 468x 395 x 57 mm |
| Mounting | VESA Mount Yoke Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP69K |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1x M12 Waterproof Connector for 2 x USB2.0 |
| Serial Port | 1 x M12 waterproof connector for RS232 |
| LAN | 1 x Waterproof Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps Manual VESA screws |
Power
| Power Rating | 12V DC (M12 type) |
