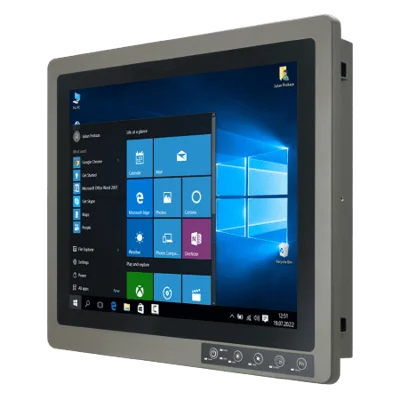

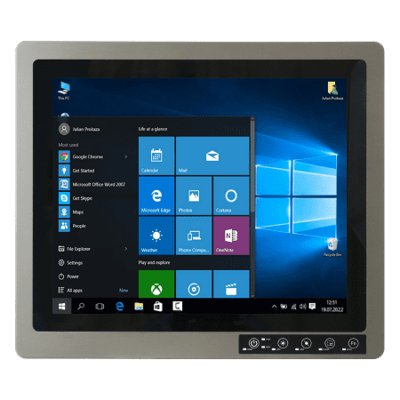

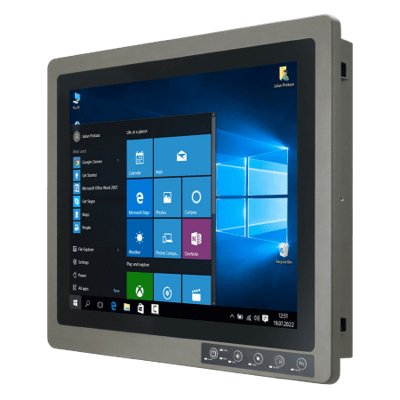

19″ ATEX Panel PC with IntelR Core i5-1135G7
Vlastnosti:
- 19″ 1000 nits LCD ATEX Panel PC
- Class 1, Division 2 & ATEX Zone 2 certified for hazardous area applications
- Intel® 11th Tiger Lake Core™ i5-1135G7 Processor
- Fanless design with streamlined enclosure for highly efficient heat dissipation
- Intelligent Heater for working in extreme cold environments -40°C
System Specification
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Intel Core i7-1165G7 2.8GHz (up to 4.70 GHz) (Optional) Intel Core i3-1115G4E 3.0GHz (up to 3.90 GHz) (Optional) Intel Core i5-1145G7E 2.6GHz (up to 4.10 GHz) (Optional) Intel Core i7-1185G7E 2.8GHz (up to 4.40 GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 8GB 16GB (Optional) 32GB (Optional) 2 x SO-DIMM, DDR4 3200 MHz, 8GB (Optional) 16GB (Optional) 32GB (Optional) 64GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB 512GB (Optional) 1TB (Optional) 2TB (Optional) 1 x SATA III for 2.5″ SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen Bonding With Panel |
| Resolution | 1280×1024 |
| Size | 19.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 1000.0 nits |
| View Angles | 85,85,80,80 |
| Active Area | 376.32×301.06 mm |
Mechanical
| Dimension | 474 x 410 x 111 mm |
| Weight | 9.8 kg |
| Mounting | Panel mount VESA mount (Optional) |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Cut out | 462 x 386 mm |
Environment
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -40°C to 70°C (with intelligent heater) |
| Storage Temperature | -40°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP66 Meet Standard IEC60529 (for Non-Hazardous location) IP54 Meet Standard IEC60079 (for Hazardous location) |
Certification
| Certification | CE, FCC ANSI/UL 62368-1-2019 Class I, Div.2, Groups A,B,C,D T4 ATEX II 3G Ex ic IIC T4 Gc IECEx Ex ec ic IIC T4 Gc |
IO Ports
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
| USB Port | 1 x USB2.0, 4-Pin Terminal Block 1 x USB 3.2 Gen1x1 (Type A, only used in safe area) 2 x USB2.0 (Type A, only used in safe area) |
| Serial Port | 1 x RS232/422/485, 10-Pin Terminal Block 1 x DB9 RS232(only used in safe area) |
| Video | 1 x DB15 VGA(only used in safe area) |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD) (SATAIII is only available when M.2 NVMe is not in use) 1 x M.2 2230 E-KeySlot (for Wi-Fi Module) |
| LAN | 1 x LAN, , 8-Pin Terminal Block 1 x RJ45(only used in safe area) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage 1 x LED Indicator for heater 1 x LED Indicator for LAN 1 x LED Indicator for lock touch |

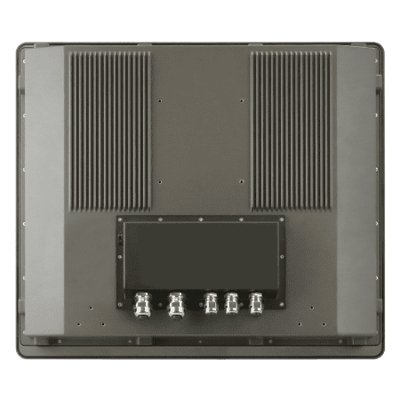

| Gland | 2 x EX-Type Brass Cable Gland M16 (Cable range 7.5~10.2mm) 3 x EX-Type Brass Cable Gland M12 (Cable range 5.4~8mm) |
Control
| Button | 1 x Power Button 1 x Brightness up Button 1 x Brightness down Button 1 x Button for locking touch function 1 x Programmable function key |
Accessory
| Accessory | 24V 150W AC to DC Adapter Power cord Open wired power cable for M12 cable Gland Open wired USB cable for M12 cable Gland Open wired LAN/COM cable for M16 cable Gland VESA Mounting Screws Mounting Clips & Screws 3 Pins Terminal Block For Power 8 Pins Terminal Block For LAN 4 Pins Terminal Block For USB 10 Pins Terminal Block For COM |
Vyhrazujeme si právo na chyby v popisu. Parametry produktu si prosíme vždy zkontrolujte v datasheetu.
