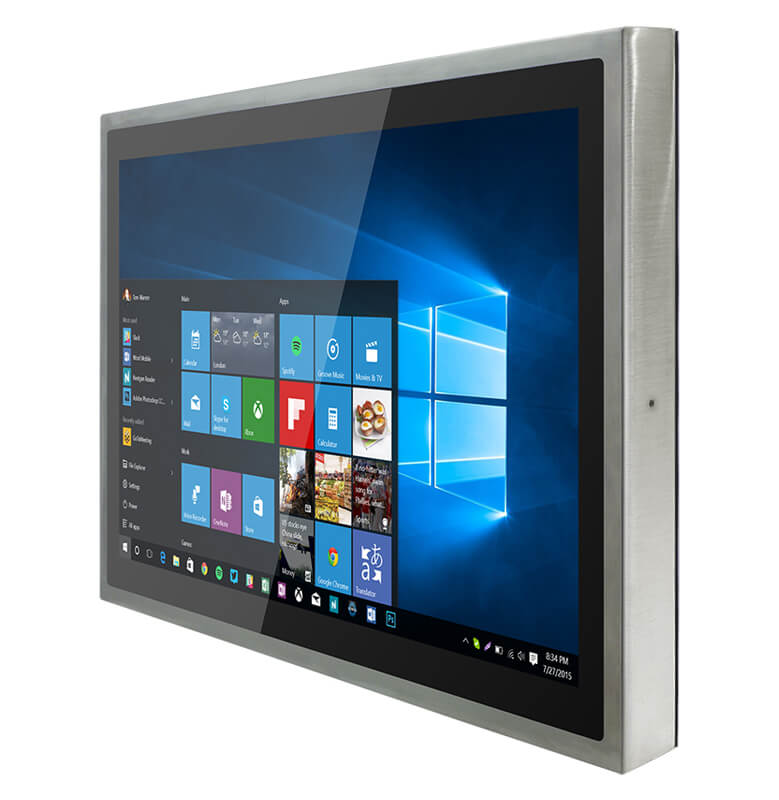

R19IB3S-SPM169 – 19-inch IP69K Flat Stainless P-CAP Panel PC
Features
LCD Panel Specification
| Size | 19″ |
| Contrast Ratio | 1000:1 (typ.) |
| Panel Brightness | 250 cd/m2 (typ.) |
| Viewing Angle | -85~85(H);-80~80(V) |
| Recommend Resolution | 1280 x 1024 |
| Touch Screen | Projected Capacitive Multi-Touch (Default) Non-touch glass (Optional) Anti-glare coating (Optional) |
| Maximum Colors | 16.7M |
System Specification
| Processor | Intel® Celeron Bay Trail-M N2930 1.83GHz |
| Chipset | Intel® Atom SoC Integrate |
| Memory | 1 x SO-DIMM, Default 4GB, Max 8GB DDR3L 1600 |
| BIOS | AMI 16Mbit Flash |
| Ethernet | 2 x RJ45 Gigabit LAN (1 x RJ45 internal) |
| Audio | Built-in ALC886 HD Audio Codec |
| Serial | 4 x RS232 (3 x RS232 internal) |
| USB | 6 x USB2.0 (4 x USB internal) |
| SDD Interface | 1 x Mini PCIe SSD |
| Expansion Slots | 1 x Mini PCIe (Internal) |
| Storage | Default 64GB Mini PCIe SATAIII |
| Other | Trusted Platform Module (TPM 1.2) |
I/O Connectors
| USB Port | 2 x USB Type-A Receptacle |
| Ethernet | 1 x RJ45 – 10/100/1000 Mbps |
| COM Port | 1 x RS232 |
Mechanical and Environment
| Power Input | DC in (Lockable power jack) |
| Operating Temperature | 0 deg.C to 45 deg.C |
| Operating Humidity | 30% to 90% (non-condensing) |
Power
| Power Input | 12V DC in(Lockable power Jjack) |
| Power Consumption | 45W (typ.)(Max.backlight & high CPU load) |
Order Options
| RAM | SODIMM DDR3L, max. 8GB |
| Storage | Mini PCIe SSD |
| OS | Windows 10 IoT Enterprise Windows Embedded 8.1 Industry Pro Windows Embedded 8 Standard Windows Embedded 7 Standard |
Standard and Certification
| Certification | CE, FCC, RoHs |
