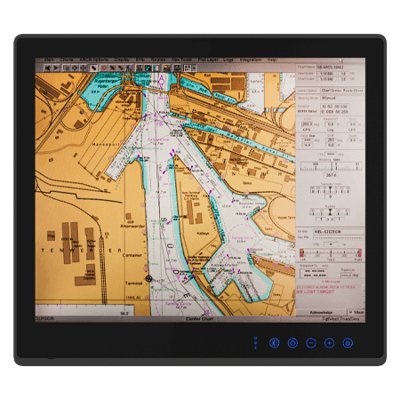

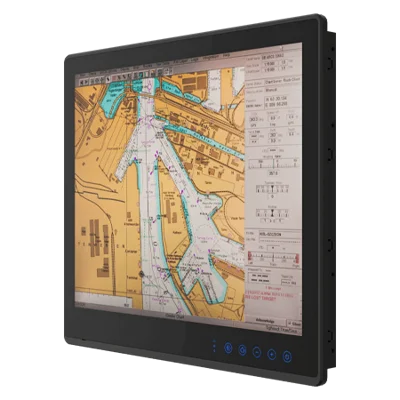

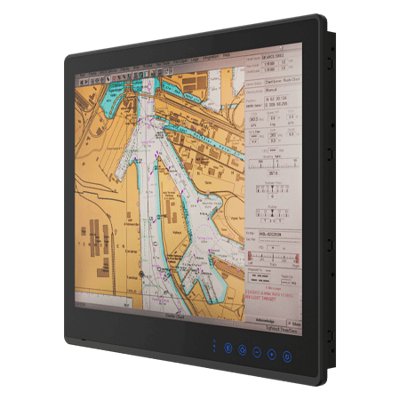

19″ IntelR Core i5-1335U Flat PCAP ECDIS Marine Panel PC
Vlastnosti:
- 19” 1280 x 1024 resolution with projective capacitive multi-touch screen
- Edge-to-edge narrow bezel design and fanless cooling system
- Color calibrated for ECDIS compliance (Optional)
- Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
- Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software
- Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNV-CG-0339, IACS E10
- Support capacitive touch key lock / touchscreen lock function
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen (AR Coating) AG film (Optional) AR Glass (Optional) |
| Resolution | 1280×1024 |
| Size | 19.0 inches |
| Contrast Ratio | 2000:1 |
| Panel Brightness | 350.0 nits |
| View Angles | 89,89,89,89 |
| Active Area | 376.32×301.06 mm |
System Specification
| Processor | Intel® Core™ i5-1335U 3.4GHz(up to 4.60 GHz) |
| Memory | 1 x SO-DIMM, DDR5 4800 MHz, 8GB 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
Environment
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB3.0 1 x USB2.0 |
| Serial Port | 1 x RS232(Default)/422/485 1 x RS232 (Optional) |
| Video | 1 x HDMI (Optional) |
| LAN | 2 x RJ45 |
| Front Control | Power Brightness + Brightness – Menu Function Key(Default setting: ECDIS Mode) |
| Indicator | Day Mode Dusk Mode Night Mode |
| DIDO | 8 Channel Isolated Digital Input/Output (Optional) |
| NMEA | 4 x NMEA 0183 Port (Optional) |
Mechanical
| Dimension | 429 x 382 x 72.8 mm |
| Weight | 7.8 kg |

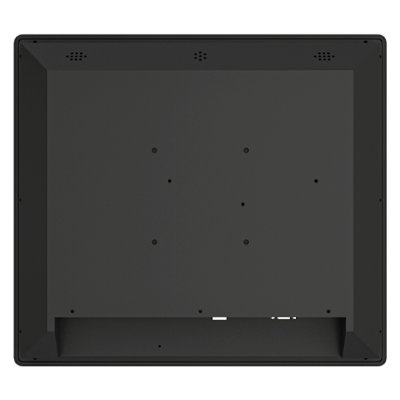

| Mounting | VESA mount/Panel mount |
| Enclosure | Anodized Aluminum Bezel |
| Cooling System | Fanless Design |
| Cut out | 408 x 359 mm |
Accessory
| Accessory | User Manual 12V AC to DC Adapter (with 3 pin Terminal Block) Power Cord M4 x 30 Black Screws Bolts M4 x 15 Sliver Screws Bolts |
| Optional Accessory | Four 5 Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional) |
Power
| Power Rating | 24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable |
| Consumption | 65W (Typical) |
