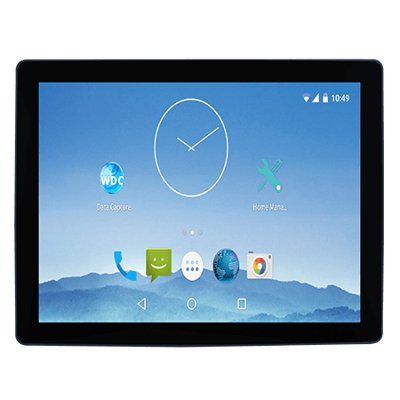

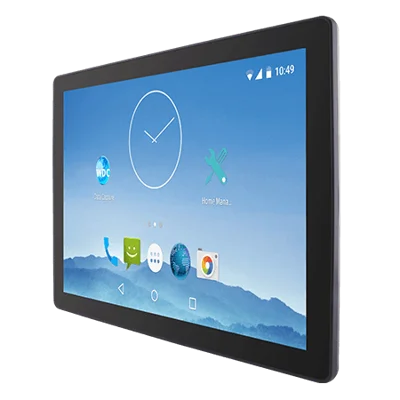

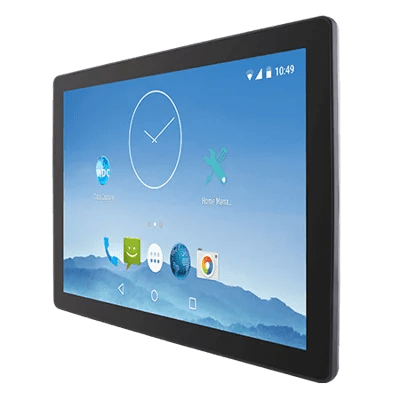

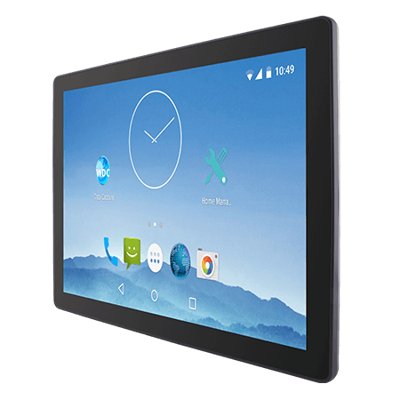

15″ ARM A72+A53 HMI Panel PC
Vlastnosti:
- 15” 1024 x 768 with PCAP touchscreen
- ARM A72 + A53 Processor HMI Panel PC
- Fanless cooling system and ultra-low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Display
| Resolution | 1024×768 |
| Size | 15.0 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350 nits |
| View Angles | 80,80,70,80 |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| Processor | ARM A72 (up to 2.0 GHz) + ARM A53 (up to 1.5 GHz) |
| Memory | 2GB LPDDR3L 1600 4GB (Optional) |
| Storage | Onboard 16GB eMMC Onboard 32GB eMMC (Optional) Mico SD Card SDHC (Optional) |
| Operating System | Android 7.1 |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
Mechanical
| Dimension | 352.5 x 276.7 x 45 mm |

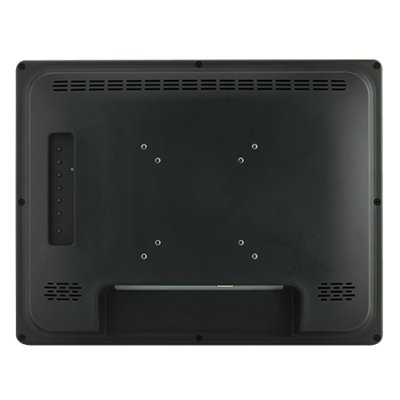

| Mounting | VESA Mount (100x100mm, 75x75mm) |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
IO Ports
| USB Port | 1 x USB 3.0, 1 x USB 2.0, 1 x USB OTG |
| Serial Port | 1 x RS-232/422/485 |
| SD Card Slot | 1 x Micro SD Card Slot |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 2 x Speaker |
| LAN | 1 x RJ 45-10/100/1000 Mbps LAN Support PoE function |
| Indicator | Power LED Indicator |
Accessory
| Accessory | Driver CD & User Manual Quick Start Guide(Hardcopy) AC Adapter 12V/50W Power Cord 3 Pin Terminal Block to DC Jack |
Power
| Power Rating | 12V DC in(Phoenix type) |
| POE | Power Device (PD), follows IEEE 802.3at (25 W) |
Control
| Button | 1 x Power Button 1 x Reset Button |
