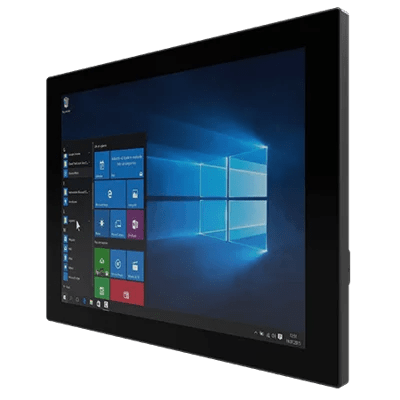

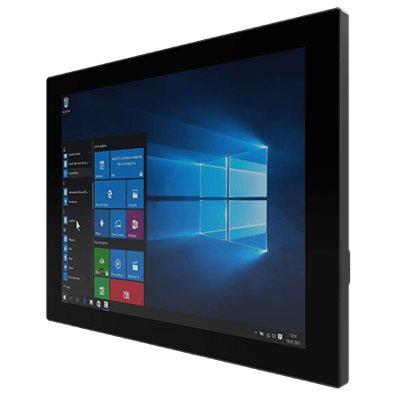

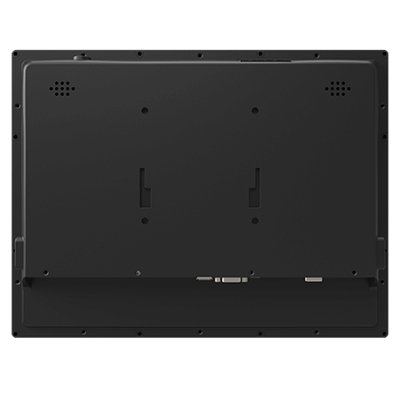

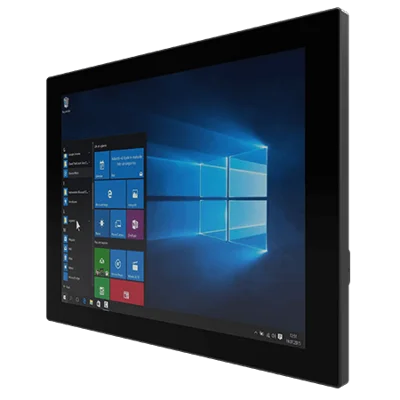

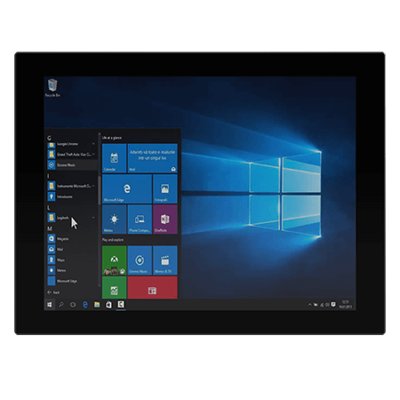

15″ IntelR CeleronR i5 G-WIN GC-Series Front IP65 PCAP Panel PC
Vlastnosti:
- 15” 1024 x 768 PCAP touchscreen
- Intel® 8th Generation Core™ i5-8265U (6M Cache, 1.6GHz up to 3.9 GHz)
- Fanless cooling system and ultra low power consumption
- Front IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen Anti-glare Coating (Optional) |
| Resolution | 1024×768 |
| Size | 15 inches |
| Contrast Ratio | 2000:1 |
| Panel Brightness | 300 nits 1000 nits(Optional) |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
System Specification
| Processor | Intel® Core™ i5 -8265U (6M Cache, 1.6GHz up to 3.9 GHz, BGA onboard CPU) |
| Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (Optional) Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| Video | 1 x HDMI 1.4 (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 2 x M.2 slot(1 for WiFi, 1 for SSD) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Mechanical
| Dimension | 363.4 x 277.86 x 44.5 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
Accessory
| Accessory | Quick Start Guide(Hardcopy) Driver CD & User Manual AC Adapter Power Cable |
Power
| Power Rating | 12V DC |
| Adapter | 12V 84W |
Control
| Button | 1 x Power Button 1 x Reset Button |
