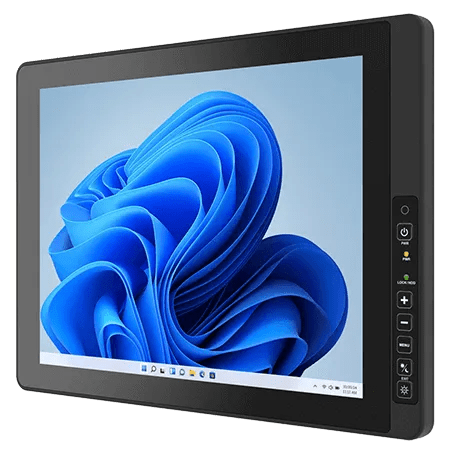

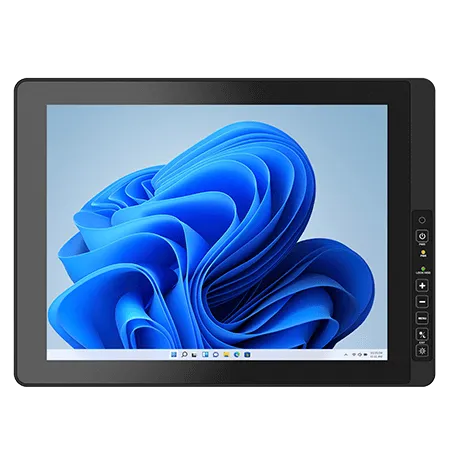

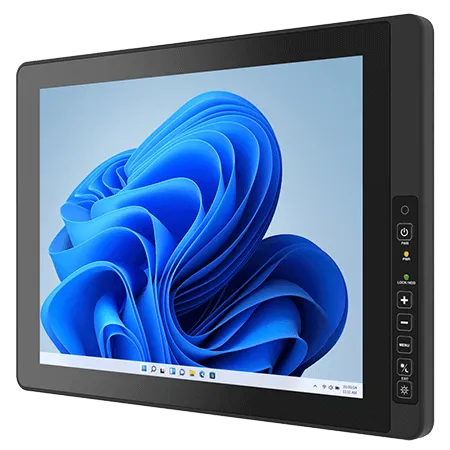

- 15” Panel, 1024*768 resolution, 300 nits (Optional for 1000 nits)
- Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz
- P-cap multi touch screen
- Optional True Flat 5 Wire Resistive Touch
- Optional Anti-Reflective Protection Glass
- Aluminum Die-Casting Housing with Anti-Corrosion Treatments
- Build in ambient Light sensor
- Front IP65 (Except I/O parts)
- -10 to 55°C wide operating temperature
- 1 x 2.5 Giga LAN .1 x Giga LAN RJ45 Connector. Support Edge BMC for OOB(Out-of-Band) remote control management
- Wide Range 9 to 36V DC Input with isolation. Optional for Ignition On/Off delay
- Anti-Shock & Vibration compliant with MIL-STD-810F/G
System Specification
| Processor | Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz |
|---|---|
| Memory | 1 x SO-DIMM, DDR5 5600 MHz, 8GB (Default) 16GB (Optional) 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | LAN1: Intel I210;.Support EdgeBMC for OOB(Out-of-Band) remote control management LAN2: Intel I226 |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
Display
| Size | 15.0 inches |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024×768 |
| Panel Brightness | 1000.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
Mechanical
| Dimension | 379.4 x 278.4 x 58 mm |
|---|---|
| Weight | 3.8 kg |

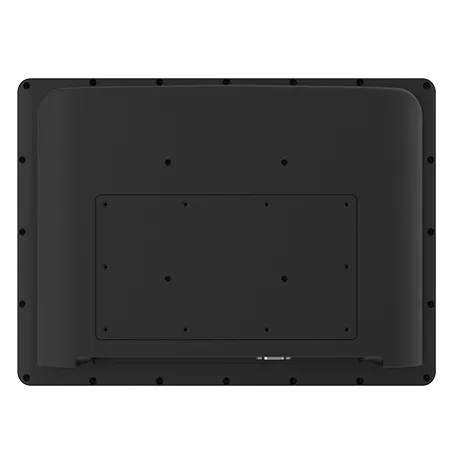

| Mounting | VESA mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
|---|---|
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I (Optional) |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
|---|
IO Ports
| USB Port | 2 x USB3.2 Gen1x1 (Type-A) |
|---|---|
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| LAN | 1 x 2.5 Giga LAN RJ45 Connector 1 x Giga LAN RJ45 Connector.Support EdgeBMC for OOB(Out-of-Band) remote control management |
| Video | 1 x HDMI 2.0b (Optional) |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
| Power Input | 1 x 9~36V DC, 3-Pin Terminal Block |
Control
| Button | 1 x Power Button 1 x Reset Button 1 x Lock / Unlock front key function button 1 x Auto Dimming / Manually button 1 x Day / Night Mode button 1 x Brightness Up button 1 x Brightness Down button 1 x LED indicator brightness adjustment button 1 x Light sensor |
|---|
Accessory
| Accessory | Open Wire Cable with terminal block connector VESA screws |
|---|---|
| Optional Accessory | Yoke mount stand (Optional) 100~240V AC to DC 84W Adapter with power cord (Optional) |
