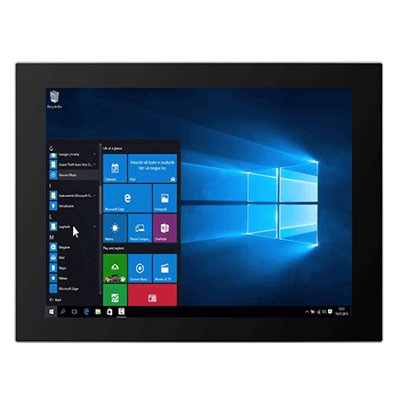

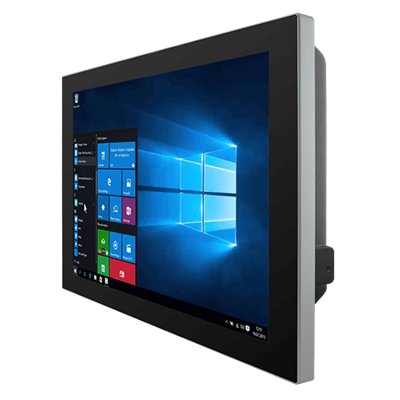

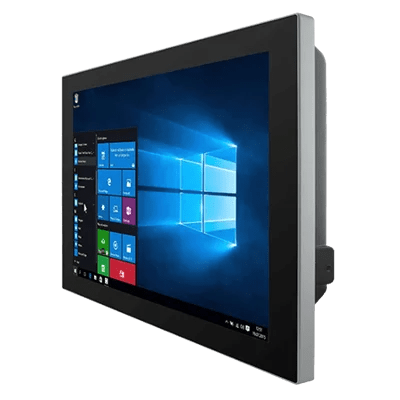

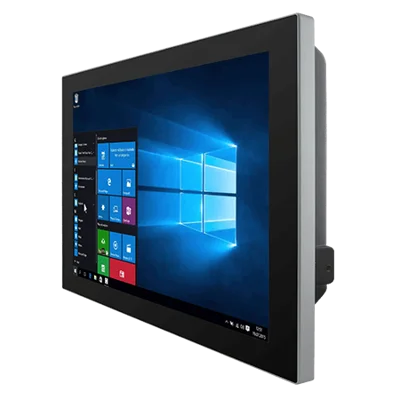

15″ IntelR CeleronR N6211 G-WIN GS-Series Full IP65 PCAP Panel PC
Vlastnosti:
- 15” 1024 x 768 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- Intel® Celeron® N6211 Elkhart Lake
- Fanless cooling system and ultra-low power consumption
- Edge-to-edge design
- Full IP65 design with Special M12 Waterproof connectors
- 1 x LAN, 1 x COM, 1 x USB 2.0
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) Anti-glare Coating (Optional) |
| Resolution | 1024×768 |
| Size | 15.0 inches |
| Contrast Ratio | 2000:1 |
| Panel Brightness | 300 nits 1000 nits(Optional) |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
System Specification
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB 1 x SATA III for 2.5″ SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | -15~55°C |
| Storage Temperature | -30°C to 60°C |
| Shock | 40g for 11ms |
| Vibration | 1.48/1.90/2.24 g rms for XYZ/ 5-500Hz |
| IP rating | IP65, Dustproof and Waterproof |
Certification
| Certification | CE, FCC Compliant with MIL-STD-810F/G for vibration / shock |
IO Ports
| USB Port | 1 x USB 2.0 (M12 type) |
| Serial Port | 1 x RS232/422/485 (Default RS232)(M12 type) |
| LAN | 1 x LAN-10/100/1000 (M12 type) |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Mechanical
| Dimension | 363.4 x 277.9 x 45.2 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
Power
| Power Rating | 9-36V DC (M12 type) |
Accessory
| Accessory | Quick Start Guide (Hardcopy) M12 Power Cable M12 Serial Interface Cable M12 USB/ LAN Cable I/O Protective Cap x 3 |
Control
| Button | 1 x Power Button 1 x Reset Button |
